Configure OpenManage Enterprise Telemetry¶

Configure OpenManage Enterprise (OME) to securely stream Telemetry data to the Omnia Kafka pipeline using mutual TLS (mTLS).

Overview¶

This procedure describes how to integrate OpenManage Enterprise with the Omnia Kafka pipeline for secure Telemetry data streaming. OME connects to the Kafka external mTLS listener on port 9094 and publishes inventory, health, alerts, and audit-log data to Kafka topics. The Vector-OME bridge consumes the matching topics and routes metrics to VictoriaMetrics and logs to VictoriaLogs.

OME creates the topics when it begins publishing. Omnia deploys the bridge and its dedicated vector-ome-user, but does not deploy OME.

Prerequisites¶

Complete the common Telemetry deployment prerequisites.
Ensure that the nodes are discovered in OpenManage Enterprise before configuring Telemetry streaming.
Ensure that the OpenManage Enterprise Advanced license is installed for the nodes discovered in OME. This license is required to retrieve OME Telemetry.
Enable OME with the Kafka collection target. The Vector-OME bridge derives the required VictoriaMetrics and VictoriaLogs sinks from its enabled channels; another source is not required to select those sinks.
Have an OME instance that can reach the native Kafka LoadBalancer endpoint.
Install OpenSSL on the OIM if OME requires the exported client certificate in PKCS#12 format.

Procedure¶

Configure the OME source and bridge in telemetry_config.yml:

telemetry_sources:
  ome:
    metrics_enabled: true
    logs_enabled: true
    collection_targets:
      - kafka

telemetry_bridges:
  vector_ome:
    metrics_enabled: true
    logs_enabled: true
    ome_identifier: "ome"

Each bridge channel requires the corresponding OME source channel. Change ome_identifier only when the OME Kafka topic prefix differs; the bridge matches <identifier>.* topics.

Run the Telemetry precheck. Choose one execution method; do not run both commands for the same operation.

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags precheck

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags precheck

Validate the Telemetry inputs:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags validate

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags validate

Deploy the enabled Telemetry configuration:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry --tags deploy
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags deploy
To run validation and deployment together, omit --tags from either command:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml
The untagged flow does not run the opt-in precheck. Run step 2 separately when an environment precheck is required.

Step 5: Retrieve Kafka connection details and configure OME¶

Extract Kafka connection details and TLS certificates¶

Retrieve the Kafka connection details and TLS certificates from the Service Kubernetes cluster:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry --tags external_kafka
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags external_kafka
This utility retrieves the native Kafka LoadBalancer endpoint and HTTP bridge endpoint, extracts the server CA and client certificate files from the telemetry namespace, and writes them to:
```
$OMNIA_DATA_PATH/telemetry/output/$OMNIA_PROJECT_NAME/external_kafka/
```
The directory contains external_kafka_connect_details.yml, ca.crt, user.crt, and user.key. Use the kafka.bootstrap_server value from the connection-details file when configuring OME.

Note

If OpenManage Enterprise is installed on a different system, securely copy ca.crt and the generated user.pfx file to that system before uploading them in the OME interface.

Create the client certificate in .pfx format for mTLS. Enter a passphrase when prompted:

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd "$OMNIA_DATA_PATH/telemetry/output/$OMNIA_PROJECT_NAME/external_kafka"
openssl pkcs12 -export -out user.pfx -inkey user.key -in user.crt

Configure OME Kafka connectivity¶

In OpenManage Enterprise, go to Configuration > Remote Connectivity and select Enable.

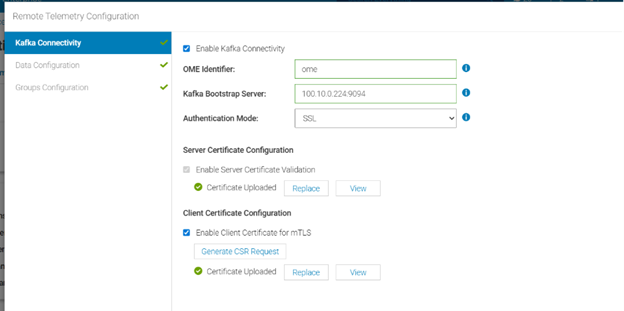

In the Kafka Connectivity wizard, select Enable Kafka Connectivity.
In OME Identifier, enter the unique identifier used as the topic prefix for OpenManage Enterprise metrics. It must match telemetry_bridges.vector_ome.ome_identifier in telemetry_config.yml.
In Kafka Bootstrap Server, enter the kafka.bootstrap_server value from external_kafka_connect_details.yml.
From Authentication Mode, select SSL.
Under Server Certificate Validation, enable certificate validation and upload ca.crt.
Under Client Certificate Configuration, enable the client certificate for mTLS, upload user.pfx, enter the passphrase used to create it, and select Next.

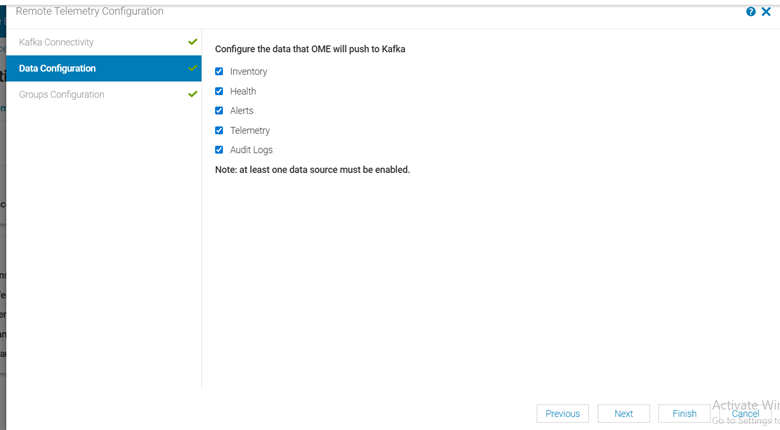

On the Data Configuration page, select the metrics to stream to the Omnia Service Kubernetes cluster, and select Next.

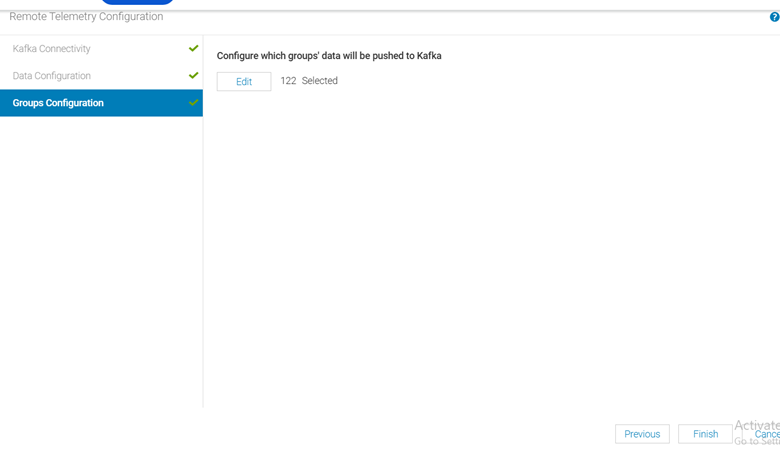

On the Group Configuration page, select the devices and device groups from which metrics must be collected, and select Next.

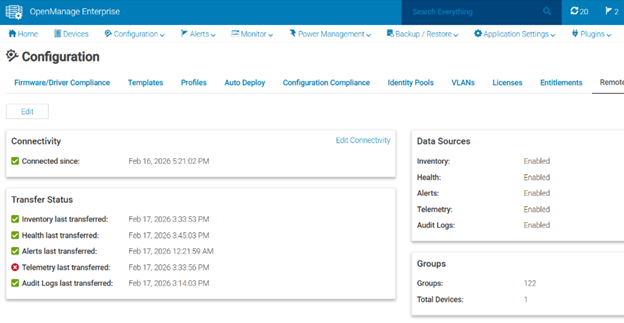

Go to Configuration > Remote Connectivity and verify that:
- A green check mark next to Connected since indicates successful connectivity between OME and the Omnia Service Kubernetes cluster.
- Green check marks under Transfer status indicate that the selected metrics are being transmitted without errors.

Verification¶

Verify OME messages in Kafka¶

To verify that OME Telemetry data is being successfully published to the OME Kafka topics:

Log in to the Service Kubernetes control plane.
List the Telemetry services and note the external IP of the bridge-bridge-lb service:
Run on: Kubernetes control plane
```
kubectl get svc -n telemetry
```

Set the required variables. Set TOPIC to one of the topics published by OME, such as ome.telemetry:

Run on: Kubernetes control plane

KAFKA_LB_IP=<external IP of bridge-bridge-lb service>
TOPIC=<OME topic name>
GROUP=ome-consumer-group
INSTANCE=ome-consumer

Create a Kafka consumer:

Run on: Kubernetes control plane

curl -ksS -X POST "https://$KAFKA_LB_IP:8080/consumers/$GROUP" \
  -H 'content-type: application/vnd.kafka.v2+json' \
  -d '{
        "name": "ome-consumer",
        "format": "json",
        "auto.offset.reset": "earliest"
      }'

View the configured OME Kafka topics:

Run on: Kubernetes control plane

curl -ksS -X GET "https://$KAFKA_LB_IP:8080/topics" \
  -H 'accept: application/vnd.kafka.v2+json' | jq '.'

Subscribe the consumer to the selected topic:

Run on: Kubernetes control plane

curl -ksS -X POST \
  "https://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE/subscription" \
  -H 'content-type: application/vnd.kafka.v2+json' \
  -d "{\"topics\": [\"$TOPIC\"]}"

Consume messages from the topic:

Run on: Kubernetes control plane

while true; do
  curl -ksS -X GET \
    "https://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE/records" \
    -H 'accept: application/vnd.kafka.json.v2+json' | jq '.'
  sleep 2
done

Optionally, delete the consumer after verification:

Run on: Kubernetes control plane

curl -ksS -X DELETE \
  "https://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE"

Note

Set auto.offset.reset to earliest to retrieve existing data.
Use format: json only when OME publishes JSON. Otherwise, use binary and decode the Base64 payloads.
An empty array indicates that there are no new records. Adjust the polling interval when required.
HTTP 404 usually indicates an incorrect group or instance name. HTTP 409 indicates that the consumer is already subscribed.

View OME metrics in VictoriaMetrics UI¶

To verify that the Vector-OME bridge is routing OME data from Kafka to VictoriaMetrics:

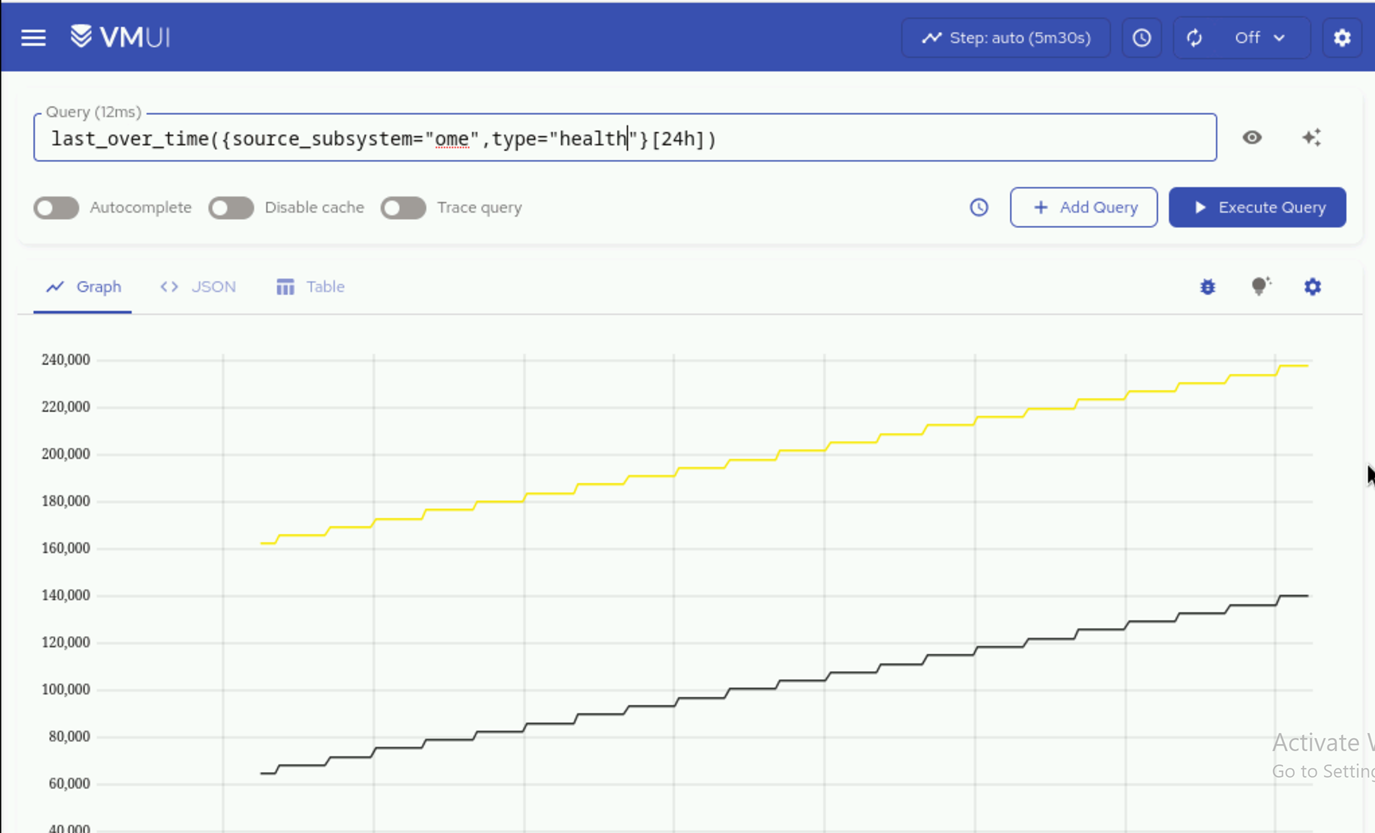

Access the VMUI in a web browser:

https://<external vmselect loadbalancer IP>:8481/select/0/vmui

Go to the Explore tab.

Run the applicable query:

Retrieve OME health metrics:

last_over_time({source_subsystem="ome", source_topic="ome.health"}[15m])

Retrieve OME Telemetry metrics:

last_over_time({source_subsystem="ome", source_topic="ome.telemetry"}[15m])

The source_subsystem value comes from telemetry_bridges.vector_ome.ome_identifier. The suffix after the dot in source_topic, such as health, inventory, or telemetry, is supplied by OME.

View OME logs in VictoriaLogs¶

To verify that the Vector-OME bridge is routing OME logs from Kafka to VictoriaLogs:

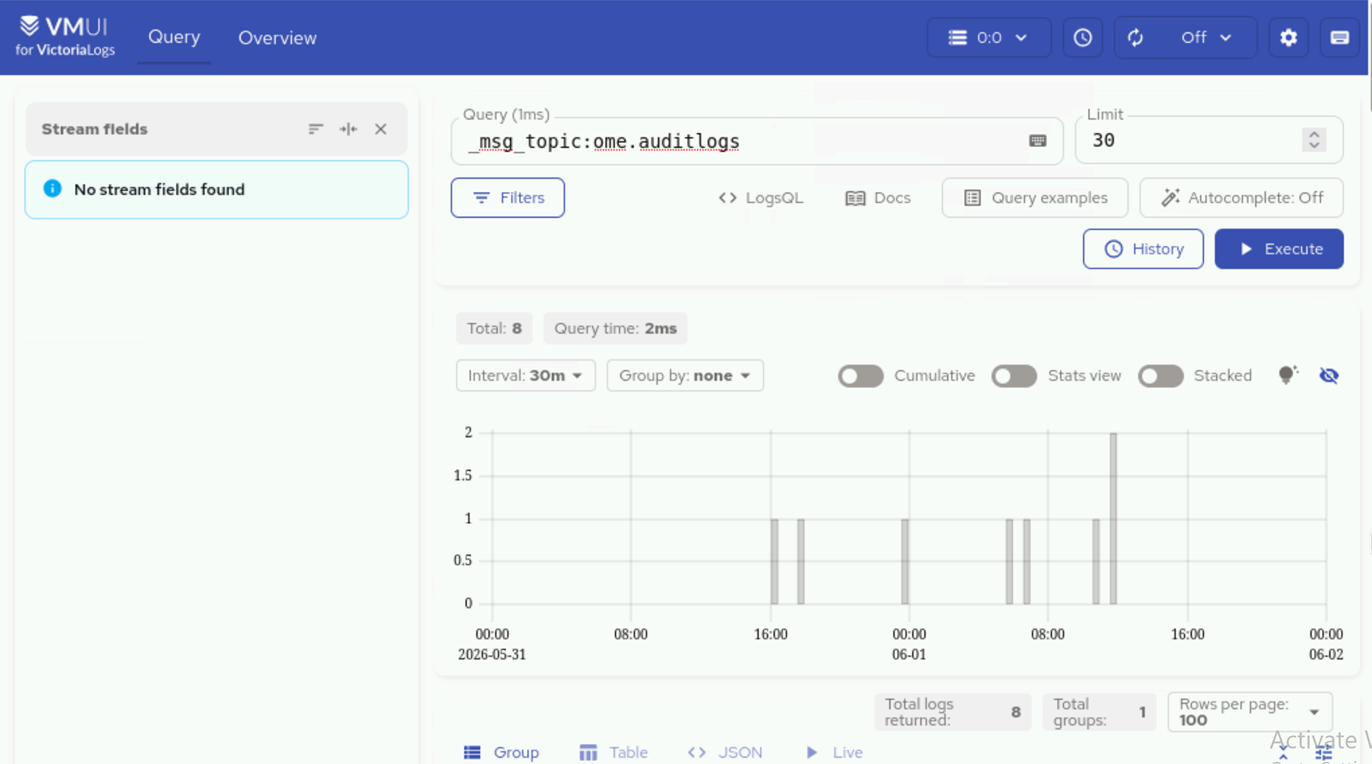

Access the VictoriaLogs UI in a web browser:

https://<external vlselect loadbalancer IP>:9471/select/vmui

Go to the Select tab.
Run the following query:
```
_msg_topic:ome.auditlogs
```
Verify that OME-related logs are displayed.

Note

Enable telemetry_bridges.vector_ome.logs_enabled in telemetry_config.yml to route log data from Kafka to VictoriaLogs.

Confirm that the bridge pod is running:

Run on: Kubernetes control plane

kubectl get pods -n telemetry -l app=vector-ome

Confirm the requested OME channels are deployed under sources.ome and bridges.vector_ome: deployed in telemetry_status.yml.

These values confirm that the bridge resources are deployed. Query the matching OME topics and the enabled Victoria sink to prove end-to-end data flow.

Next steps¶

Optional: To disable OME Telemetry metrics and logs without removing its infrastructure, set the metrics_enabled and logs_enabled values under both telemetry_sources.ome and telemetry_bridges.vector_ome to false in telemetry_config.yml. Then rerun deployment:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd <OMNIA_SOURCE_PATH>/src/main ./omnia.sh --run telemetry --tags deploy
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags deploy

The OME Telemetry pods are scaled down to zero. Its services and ConfigMaps remain available for later use. - To re-enable OME Telemetry, set the required source and bridge metrics_enabled or logs_enabled values to true, and rerun the same deploy command. - To remove OME Telemetry resources and source-owned persistent volumes, see Clean Up Telemetry. - Retain the exported Kafka CA and client files securely for OME maintenance.

Troubleshooting¶

The bridge validation fails: Ensure OME uses only the kafka collection target and enable each source channel required by the corresponding bridge channel.
The metrics or logs bridge lacks a sink: Confirm the corresponding Vector-OME channel is enabled. The bridge selection supplies the required VictoriaMetrics or VictoriaLogs sink.
No OME topics are consumed: Confirm OME is publishing to the generated native Kafka endpoint and that topic names match the configured identifier.
The export utility fails: Verify Kafka pods are Running and Ready and both Kafka LoadBalancer services have external IPs.
