Configure LDMS Telemetry¶

Configure Lightweight Distributed Metric Service (LDMS) to collect in-band Telemetry from Slurm clusters.

Overview¶

LDMS collects system metrics such as CPU, memory, network, I/O, and Slurm job statistics. During deployment, Omnia attaches LDMS aggregator and store pods to the admin network. This improves throughput between Slurm nodes and the Kubernetes cluster.

Components¶

LDMS producer (collector) -- Collects local system metrics and runs on Slurm controller, compute, and login nodes.
LDMS aggregator -- Receives and aggregates metrics from producers. Runs as a Kubernetes pod.
LDMS store -- Buffers and stores metric batches reliably. Runs as a Kubernetes pod.
Kafka broker -- Handles telemetry streaming for consumption by downstream systems.

For more details, see the Lightweight Distributed Metric Service.

Data flow¶

Slurm compute nodes (LDMS sampler) → LDMS aggregator → LDMS store → Kafka
                                                                    ↓
                                              Optional Vector-LDMS bridge
                                                                    ↓
                                  Vector-LDMS → vmagent-vector → VictoriaMetrics

LDMS data is always sent to Kafka. To route LDMS metrics to VictoriaMetrics, enable the Vector-LDMS bridge.

Supported metrics¶

Plugin	Metrics collected
`meminfo`	Memory usage statistics
`procstat2`	Process statistics
`vmstat`	Virtual memory statistics
`loadavg`	System load average
`slurm_sampler`	Slurm job statistics
`procnetdev2`	Network interface statistics

Prerequisites¶

Complete the common Telemetry deployment prerequisites.
Build and host the LDMS producer RPM repository, configure it as the ldms user repository, and complete Repository Manager synchronization before building the Slurm node images.
Ensure cluster_inventory contains at least one Slurm control node and one Slurm compute node. The precheck requires slurmctld on control nodes and slurmd on compute nodes.
Ensure at least one reachable Slurm control node has a readable /etc/munge/munge.key.
Make the shared Slurm and Kubernetes mounts configured by telemetry_packages.yml available to their respective nodes.
Provide ldms_sampler_password when prompted.

Procedure¶

Enable the LDMS source in telemetry_config.yml. Kafka is its only supported collection target:
```
telemetry_sources:
  ldms:
    metrics_enabled: true
    collection_targets:
      - kafka

telemetry_bridges:
  vector_ldms:
    metrics_enabled: true
```
Disable vector_ldms.metrics_enabled only when LDMS data should remain in Kafka and should not be forwarded to VictoriaMetrics.

Configure ports and sampler plugins. Aggregator and store ports accept 6001 through 6100; the sampler port accepts 10001 through 10100.

ldms_configurations:
  agg_port: 6001
  store_port: 6001
  sampler_port: 10001
  sampler_plugins:
    - plugin_name: meminfo
      config_parameters: ""
      activation_parameters: "interval=30000000"

Supported plugin names are meminfo, procstat2, vmstat, loadavg, slurm_sampler, and procnetdev2.

Keep the LDMS and Vector image entries in telemetry_packages.yml and their resource sections in telemetry_storage_config.yml consistent with the images and capacity available to the cluster.
Run the Telemetry precheck. Choose one execution method; do not run both commands for the same operation.
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry --tags precheck
The wrapper loads the installed Omnia environment and activates the configured virtual environment before running the Telemetry playbook.
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags precheck
If OMNIA_DATA_PATH uses a nondefault value, activate <OMNIA_DATA_PATH>/activate-omnia.sh instead.

Validate the Telemetry inputs and collect the required credentials:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags validate

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags validate

Deploy the enabled Telemetry configuration:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags deploy

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags deploy

To run validation and deployment in one invocation, omit the tag:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml
The untagged flow does not run the opt-in precheck. Run step 4 separately when an environment precheck is required.

Verification¶

Verify LDMS Telemetry pods¶

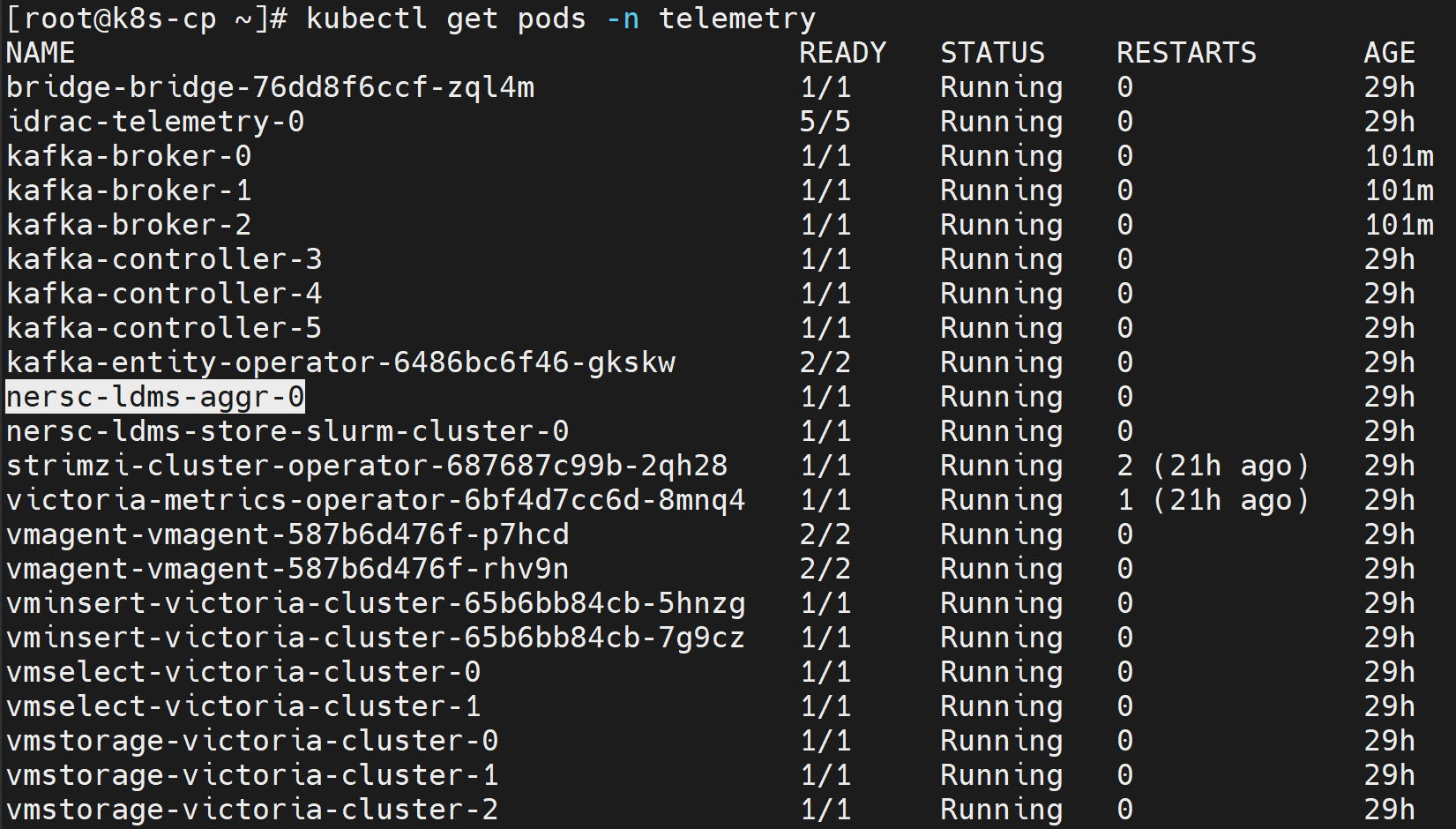

Verify that the LDMS Telemetry pods are running:

Run on: Kubernetes control plane

kubectl get pods -n telemetry

Verify LDMS messages in Kafka¶

To verify that LDMS Telemetry data is being successfully published to the ldms Kafka topic:

Log in to the Service Kubernetes control plane.

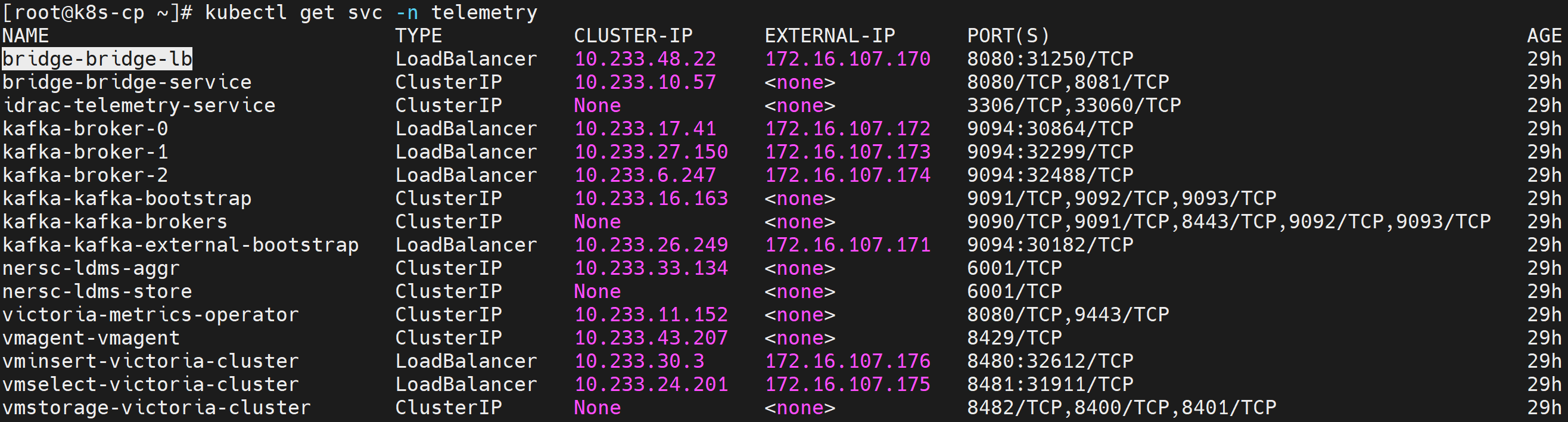

List the Telemetry services to identify the external IP of the bridge-bridge-lb service:
Run on: Kubernetes control plane
```
kubectl get svc -n telemetry
```

Set the required variables:

Run on: Kubernetes control plane

KAFKA_LB_IP=<external IP of bridge-bridge-lb service>
TOPIC=ldms
GROUP=ldms-consumer-group
INSTANCE=ldms-consumer-1

Create a Kafka consumer:

Run on: Kubernetes control plane

curl -ksS -X POST "https://$KAFKA_LB_IP:8080/consumers/$GROUP" \
  -H 'content-type: application/vnd.kafka.v2+json' \
  -d '{
        "name": "ldms-consumer-1",
        "format": "json",
        "auto.offset.reset": "latest",
        "enable.auto.commit": true
      }'

View the list of configured LDMS Kafka topics:

Run on: Kubernetes control plane

curl -ksS -X GET "https://$KAFKA_LB_IP:8080/topics" \
  -H 'accept: application/vnd.kafka.v2+json' | jq '.'

Subscribe the consumer to the LDMS topic:

Run on: Kubernetes control plane

curl -ksS -X POST \
  "https://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE/subscription" \
  -H 'content-type: application/vnd.kafka.v2+json' \
  -d "{\"topics\": [\"$TOPIC\"]}"

Consume messages from the topic:

Run on: Kubernetes control plane

while true; do
  curl -ksS -X GET \
    "https://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE/records" \
    -H 'accept: application/vnd.kafka.json.v2+json' | jq '.'
  sleep 2
done

If Telemetry is flowing correctly, the output contains JSON-formatted LDMS Telemetry records.

Note

When new nodes are added, ensure that the nodes are up and cloud-init has completed successfully. Check /var/log/cloud-init-output.log on each node. Create a new Kafka consumer group with a unique name, such as ldms-new-nodes-group, to verify metrics from the new nodes. Wait two to three minutes after discovery completes before checking.

Verify TLS configuration¶

Run the current external_kafka utility through the Telemetry playbook:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd <OMNIA_SOURCE_PATH>/src/main
./omnia.sh --run telemetry --tags external_kafka

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags external_kafka

The CLI runs src/telemetry/playbooks/telemetry.yml, which imports playbooks/utils/external_kafka_connect.yml. Confirm that the following directory contains the connection details and the ca.crt, user.crt, and user.key TLS files:

<OMNIA_DATA_PATH>/telemetry/output/<OMNIA_PROJECT_NAME>/external_kafka/

The utility fails if the Kafka pods, native Kafka endpoint, HTTP Bridge endpoint, or TLS material are unavailable.

View LDMS metrics in the VictoriaMetrics UI (VMUI)¶

LDMS metrics are routed to VictoriaMetrics through the Vector-LDMS bridge.

Verify that the Vector-LDMS pod is running:
Run on: Kubernetes control plane
```
kubectl get pods -n telemetry | grep vector-ldms
```
Verify that the vmagent-vector pod is running:
Run on: Kubernetes control plane
```
kubectl get pods -n telemetry | grep vmagent-vector
```
Verify that the VictoriaMetrics service is running:
Run on: Kubernetes control plane
```
kubectl get service -n telemetry | grep vm
```

Run the external_victoria utility to export the current VMUI URL:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd <OMNIA_SOURCE_PATH>/src/main
./omnia.sh --run telemetry --tags external_victoria

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags external_victoria

Access the VMUI in a web browser:

https://<external vmselect loadbalancer IP>:8481/select/0/vmui

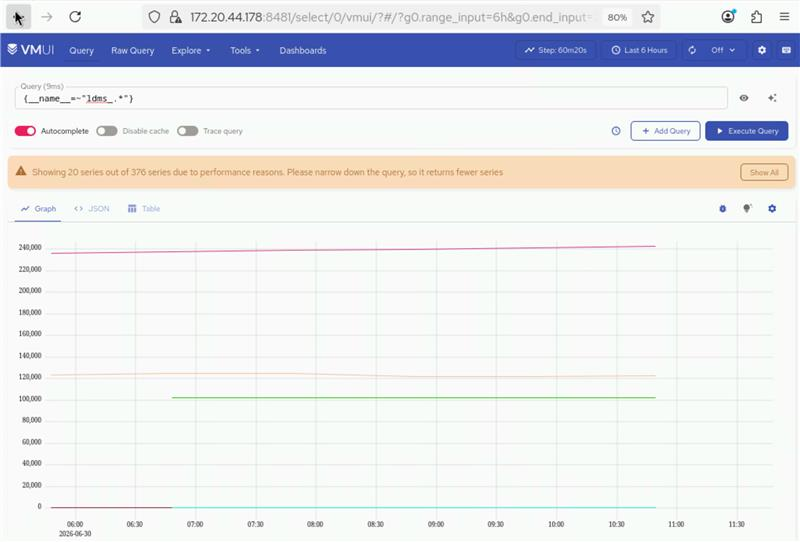

Query for LDMS metrics:
```
{__name__=~"ldms_.*"}
```

Next steps¶

Optional: To disable LDMS Telemetry metrics without removing its infrastructure, set telemetry_sources.ldms.metrics_enabled: false in telemetry_config.yml. Also set telemetry_bridges.vector_ldms.metrics_enabled: false when the Vector-LDMS bridge is enabled. Then rerun deployment:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd <OMNIA_SOURCE_PATH>/src/main ./omnia.sh --run telemetry --tags deploy
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags deploy

The LDMS Telemetry pods are scaled down to zero. Its services and ConfigMaps remain available for later use. - To re-enable LDMS Telemetry metrics, set the required source and bridge metrics_enabled values to true, and rerun the same deploy command. - To remove LDMS Telemetry resources and source-owned persistent volumes, see Clean Up Telemetry.

Troubleshooting¶

Precheck reports missing Slurm groups or services: Correct the configured inventory and start slurmctld and slurmd on the required nodes.
Aggregator preparation fails: Ensure at least one reachable control node has a readable Munge key.
A sampler does not start: Confirm that its generated configuration is present, the configured sampler port is available, and ldmsd can start. Omnia opens that port automatically when firewalld is active.
Vector-LDMS is rejected: The bridge requires the LDMS source to be enabled. It also requires Kafka and VictoriaMetrics support.
