SFM Telemetry¶

Configure Smart Fabric Manager (SFM) to securely stream telemetry metrics to VictoriaMetrics in the Service Kubernetes cluster.

Overview¶

SFM collects network telemetry metrics including transceiver DOM readings, queue statistics, interface counters, and error counters from the managed fabric. SFM streams data directly to VictoriaMetrics via Prometheus Remote Write.

Components¶

SFM Prometheus Exporter -- Collects network telemetry metrics from the managed fabric and exports them via Prometheus Remote Write.
vminsert -- VictoriaMetrics ingestion endpoint that receives metrics over TLS from SFM.

Data Flow¶

SFM (Smart Fabric Manager) → Prometheus Remote Write → vminsert → VictoriaMetrics

Supported Metrics¶

Category	Metrics Collected
Transceiver DOM	Optical power (TX/RX), temperature, voltage, bias current
Queue Statistics	Queue depth, egress queue counters, multicast queue counters
Interface Counters	Interface throughput (TX/RX bytes), packet counts, error counts, drop counts
Error Counters	CRC errors, alignment errors, symbol errors, FCS errors

For the complete list of SFM telemetry metrics, see SFM Metrics Reference.

Prerequisites¶

Complete the following before you configure SFM telemetry. Orchestrator provisions the Service Kubernetes cluster. The Telemetry domain deploys VictoriaMetrics on that cluster. Before configuring SFM, deploy Telemetry with the VictoriaMetrics sink and verify the Telemetry deployment status.

Deploy Omnia Telemetry with the VictoriaMetrics sink before running this playbook. SFM supports only VictoriaMetrics as a telemetry sink.
SFM (Smart Fabric Manager) must be operational and accessible from the service Kubernetes cluster.
Ensure that Secure Shell (SSH) is enabled on the SFM virtual machine. For detailed steps, see the Smart Fabric Manager documentation.
Ensure that pod_external_ip_range is set in omnia_config.yml for the Service Kubernetes cluster and is reachable from the SFM network.

After deploying Telemetry, verify the following output contract:

$OMNIA_DATA_PATH/telemetry/output/$OMNIA_PROJECT_NAME/telemetry_status.yml

The status must report a successful deployment with VictoriaMetrics deployed:

type: deploy
overall_status: success
sinks:
  victoria_metrics: deployed

Procedure¶

Step 1: Retrieve VictoriaMetrics Connection Details¶

Run the following playbook to retrieve the VictoriaMetrics connection details and TLS certificate from the Service Kubernetes cluster:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags external_victoria

Run on: OIM

source "$OMNIA_DATA_PATH/activate-omnia.sh"
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags external_victoria

The above playbook does the following:

Retrieves the VictoriaMetrics vminsert and vmselect LoadBalancer IPs.
Extracts the server CA certificate for TLS.
Writes the connection details to $OMNIA_DATA_PATH/telemetry/output/$OMNIA_PROJECT_NAME/external_victoria_connect_details.yml.
Saves the CA certificate at $OMNIA_DATA_PATH/telemetry/output/$OMNIA_PROJECT_NAME/external_victoria/ca.crt.

Step 2: Configure SFM Prometheus Remote Write¶

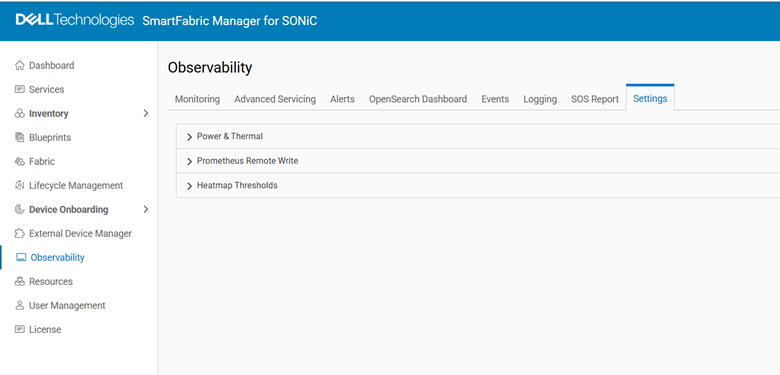

In the Smart Fabric Manager for SONiC UI, navigate to Observability, and then select the Settings tab.

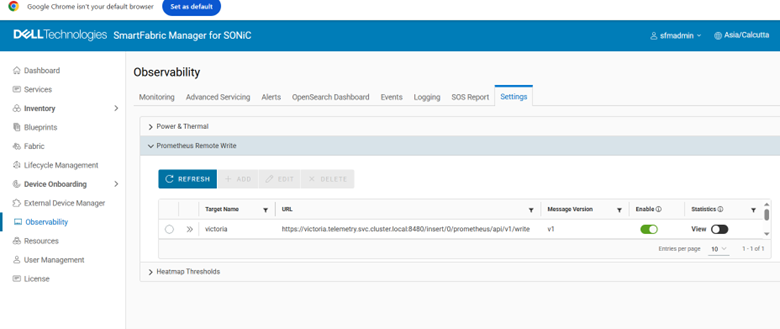

Under Prometheus Remote Write, select the option button next to vminsert-target, and then select Edit.

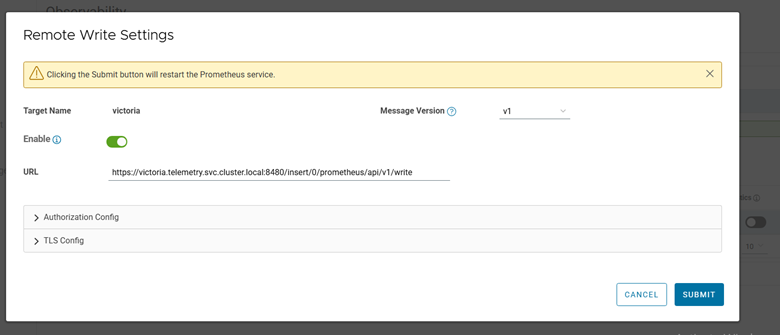

Configure the following settings:
- Enable: ON
- URL: https://vminsert-victoria-cluster.telemetry.svc.cluster.local:8480/insert/0/prometheus/api/v1/write
- Message Version: v1

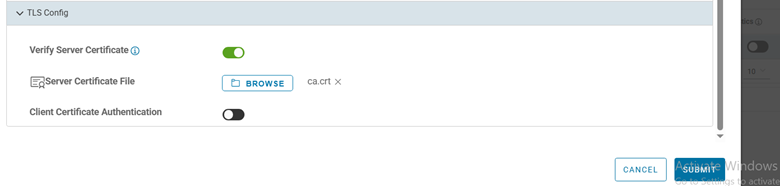

- TLS Config: Upload ca.crt from /opt/omnia/telemetry/victoria-certs/ as the Server Certificate File
Note

If SFM is installed on a different system than the OIM host, copy ca.crt from /opt/omnia/telemetry/victoria-certs/ to that system before uploading it in the UI.

Step 3: Update /etc/hosts in the SFM Prometheus Pod¶

Update the /etc/hosts file of the Kubernetes Prometheus pod in the SFM VM to resolve the VictoriaMetrics endpoint:

Log in to the SFM VM. Run the following command to connect using SSH with your admin credentials:
```
ssh <admin_user>@<sfm_vm_ip>
```
From the SFM - Main Menu, enter 6 to select Debug Menu.
From the Debug Menu, enter 12 to select Enter Secure Shell. This opens a shell session on the SFM host VM.
Identify the Prometheus pod:
```
kubectl get pods -A | grep prometheus
```

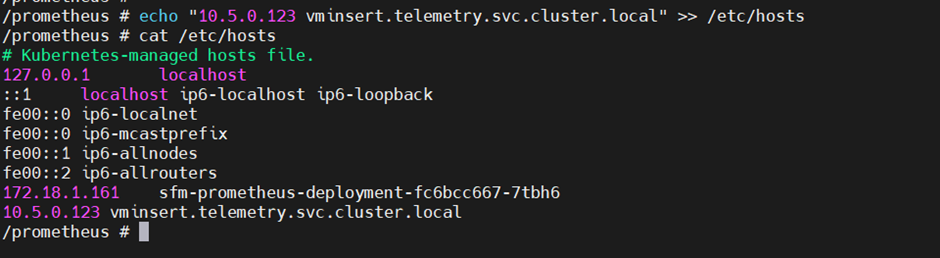

Inside the Prometheus pod, add the VictoriaMetrics insert LoadBalancer IP to /etc/hosts:

kubectl exec -it -n <Prometheus Namespace> <Prometheus Pod Name> -- /bin/sh
echo "<vminsert loadbalancer IP> vminsert-victoria-cluster.telemetry.svc.cluster.local" >> /etc/hosts

Verification¶

View SFM Telemetry Data in VictoriaMetrics UI (VMUI)¶

To view the SFM telemetry data streamed to VictoriaMetrics:

Verify that the VictoriaMetrics pods are running:
Run on K8s control plane
```
kubectl get pods -n telemetry -o wide | grep vm
```
Verify that all VictoriaMetrics cluster services are running:
Run on K8s control plane
```
kubectl get service -n telemetry -o wide | grep vm
```
Note the External IP and port number of the vmselect service.

Access the VMUI in a web browser:

https://<external vmselect loadbalancer IP>:8481/select/0/vmui

Filter and view telemetry metrics using queries in VMUI. For example, the following query displays transceiver DOM temperature values:
```
transceiver_dom_temperature_value
```

The following are some of the key metrics that can be queried:

Metric	Description
`transceiver_dom_temperature_value`	Monitors optical transceiver temperature for hardware health
`queue_tx_pkts`	Tracks transmitted packets per queue for performance monitoring
`queue_drop_pkts`	Counts dropped packets per queue to identify congestion issues
`queue_tx_bits_per_second`	Measures queue throughput in bits per second
`ifcounters_in_octets`	Monitors incoming data volume in bytes per interface
`ifcounters_out_octets`	Monitors outgoing data volume in bytes per interface
`ifcounters_in_pkts`	Counts incoming packets per interface
`ifcounters_out_pkts`	Counts outgoing packets per interface
`ifcounters_in_errors`	Tracks input errors per interface for fault detection
`ifcounters_out_errors`	Tracks output errors per interface for fault detection

For the complete list of SFM telemetry metrics, see SFM Metrics Reference.

Next Steps¶

Setup Telemetry -- Overview of all telemetry sources.

Troubleshooting¶

For common telemetry issues and resolutions, see Troubleshooting Telemetry.
