Configure iDRAC Telemetry¶

Overview¶

iDRAC Telemetry collects hardware metrics from Dell servers using the integrated Dell Remote Access Controller (iDRAC). iDRAC Telemetry includes the following components:

In multi-subnet deployments, Kubernetes control plane nodes and worker nodes can reside in different admin or PXE subnets. The iDRAC Telemetry service is deployed on Kubernetes worker nodes and collects metrics from all BMC endpoints defined in the BMC_IP column of bmc_group_data.csv.

Components¶

iDRAC Telemetry Receiver -- Receives telemetry reports sent by enabled iDRACs and publishes them to the co-located ActiveMQ broker.
ActiveMQ -- Internal message broker that buffers reports between the receiver and the enabled downstream pumps.
KafkaPump -- Routes iDRAC metrics from ActiveMQ to the Kafka idrac topic.
VictoriaPump -- Routes iDRAC metrics from ActiveMQ to VictoriaMetrics through VMAgent.
VMAgent -- Forwards metrics to the VictoriaMetrics cluster (vminsert).
MySQL Database -- Stores iDRAC telemetry metadata. Storage size is configurable through telemetry_storage_config.yml.

Data flow¶

iDRAC (BMC) → iDRAC Telemetry Receiver → ActiveMQ → KafkaPump → Kafka
iDRAC (BMC) → iDRAC Telemetry Receiver → ActiveMQ → VictoriaPump → VMAgent → VictoriaMetrics

Supported metrics¶

Category	Metrics collected
Thermal	Inlet temperature, exhaust temperature, CPU temperature, fan speeds
Power	System power consumption, PSU input/output power, power capping status
Storage Health	Physical disk status, virtual disk health, controller health, SMART data
CPU/Memory	Correctable/uncorrectable ECC errors, CPU utilization, DIMM health
System Events	Hardware alerts, lifecycle events, firmware status

For the complete list of iDRAC telemetry metrics, see the Dell iDRAC Telemetry Reference Guide and iDRAC Telemetry Reference Tools.

Prerequisites¶

Complete the common Telemetry deployment prerequisites.
Ensure Redfish is enabled in iDRAC.
Update the iDRAC firmware to the latest version.
Install an iDRAC Datacenter license on the nodes. An Enterprise license is not sufficient for streaming telemetry.
Provide the following input file with the header BMC_IP,GROUP_NAME,PARENT, and set its path in idrac_telemetry_configurations.bmc_group_data_path:

$OMNIA_DATA_PATH/orchestrator/output/$OMNIA_PROJECT_NAME/bmc_group_data.csv

For deployment-time validation, ensure each BMC is reachable from at least one service Kubernetes worker. Validation starts from the first worker; when individual BMCs remain unreachable, it retries them from the second worker, if present. If the first worker itself cannot be reached over SSH, validation runs from the control-plane VIP instead.
Have one common bmc_username and bmc_password for the BMCs, plus mysqldb_user, mysqldb_password, and mysqldb_root_password.

These credentials are requested only when iDRAC metrics are enabled. They are stored in the encrypted project file <OMNIA_DATA_PATH>/telemetry/input/<OMNIA_PROJECT_NAME>/telemetry_credentials.yml and deployed to the mysqldb-credentials Kubernetes Secret.

Procedure¶

In the project telemetry_config.yml, enable iDRAC and retain both required targets:
```
telemetry_sources:
  idrac:
    metrics_enabled: true
    collection_targets:
      - victoria_metrics
      - kafka

idrac_telemetry_configurations:
  bmc_group_data_path: "$OMNIA_DATA_PATH/orchestrator/output/<OMNIA_PROJECT_NAME>/bmc_group_data.csv"
  mysqldb_storage: "1Gi"
  oim_bmc_ips:
    oim1: ""
    oim2: ""
```
Note

Set bmc_group_data_path to an existing BMC CSV that is readable from the OIM. Orchestrator generates this file at:
```
$OMNIA_DATA_PATH/orchestrator/output/<OMNIA_PROJECT_NAME>/bmc_group_data.csv
```
Resolve OMNIA_DATA_PATH and OMNIA_PROJECT_NAME from /etc/omnia/omnia.env. Replace both placeholders with their absolute values because environment variables are not expanded inside YAML. You can use another absolute path if it points to a valid BMC CSV accessible from the OIM.
Keep the idrac_telemetry_storage resource sections in telemetry_storage_config.yml and the images.idrac entries in telemetry_packages.yml aligned with the images available to the cluster.
Run the Telemetry precheck. Choose one execution method; do not run both commands for the same operation.
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry --tags precheck
The wrapper loads the installed Omnia environment and activates the configured virtual environment before running the Telemetry playbook.
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags precheck
If OMNIA_DATA_PATH uses a nondefault value, activate <OMNIA_DATA_PATH>/activate-omnia.sh instead.
Validate the Telemetry inputs and collect the required credentials:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry --tags validate
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags validate
Enter the requested BMC and MySQL credentials when the credential workflow finds an empty value.

Deploy the enabled Telemetry configuration:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags deploy

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags deploy

To run validation and deployment in one invocation, omit the tag:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml
The untagged flow does not run the opt-in precheck. Run step 3 separately when an environment precheck is required.

Verification¶

Verify iDRAC Telemetry pods¶

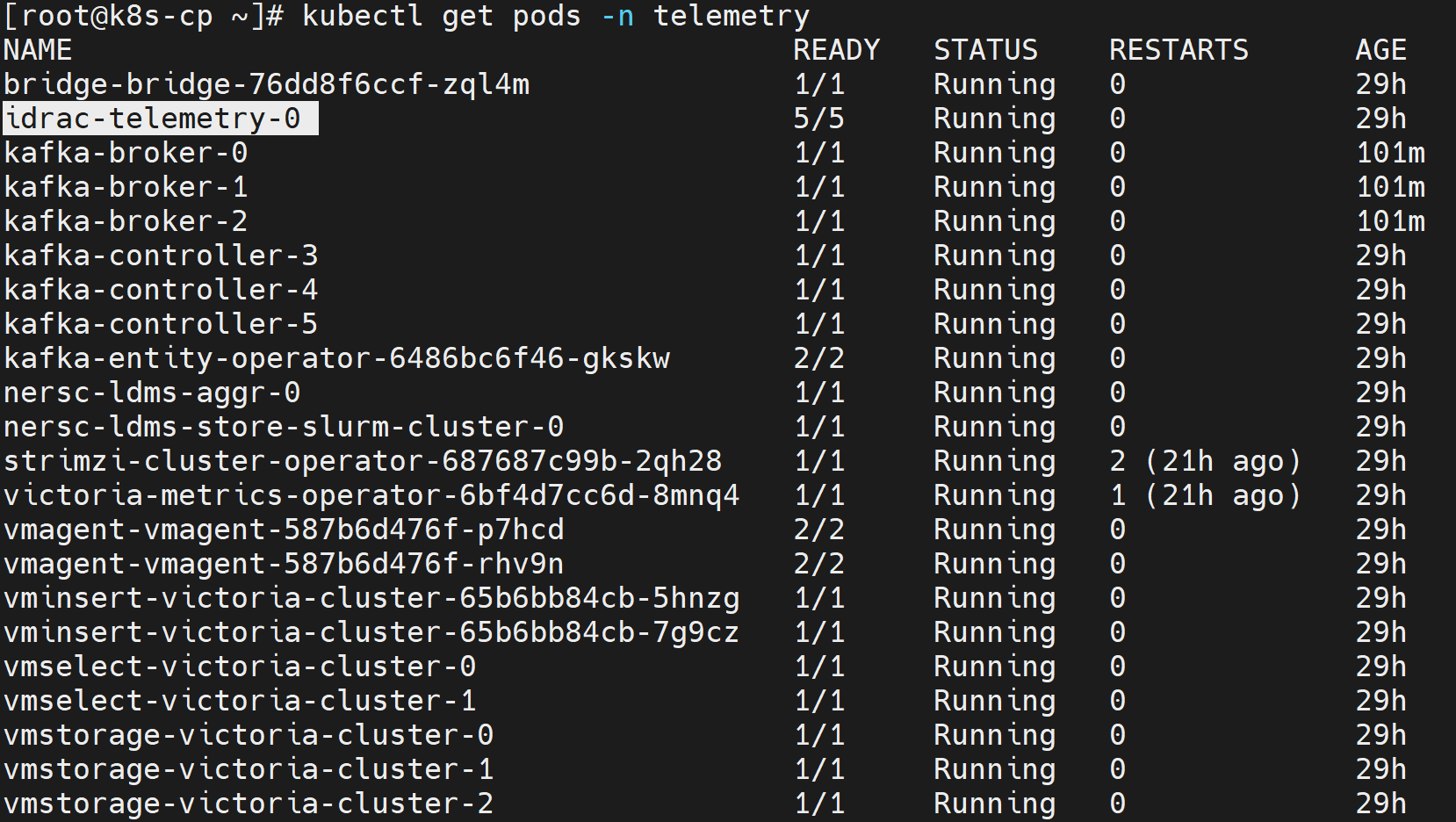

Verify that the iDRAC Telemetry pod is running:

Run on: Kubernetes control plane

kubectl get pods -n telemetry

Note

The idrac-telemetry StatefulSet is dynamically scaled based on bmc_group_data.csv. It creates one pod for MGMT_node (idrac-telemetry-0) and one additional pod for each unique, non-empty parent value. Each pod contains MySQL, ActiveMQ, the receiver, KafkaPump, and VictoriaPump. BMC records without a parent are assigned to the MGMT pod, while records belonging to each parent are assigned to that parent's dedicated pod. For example, three parent groups create four pods: one MGMT pod and three parent pods.

Verify iDRAC messages in Kafka¶

To verify that iDRAC Telemetry data is being successfully published to the idrac Kafka topic:

Log in to the Service Kubernetes control plane.
List the Telemetry services to identify the external IP of the bridge-bridge-lb service:
Run on: Kubernetes control plane
```
kubectl get svc -n telemetry
```

Set the required variables:

Run on: Kubernetes control plane

KAFKA_LB_IP=<external IP of bridge-bridge-lb service>
TOPIC=idrac
GROUP=idrac-consumer-group
INSTANCE=idrac-consumer-1

Create a Kafka consumer:

Run on: Kubernetes control plane

curl -ksS -X POST "https://$KAFKA_LB_IP:8080/consumers/$GROUP" \
  -H 'content-type: application/vnd.kafka.v2+json' \
  -d '{
        "name": "idrac-consumer-1",
        "format": "json",
        "auto.offset.reset": "latest",
        "enable.auto.commit": true
      }'

View the list of configured iDRAC Kafka topics:

Run on: Kubernetes control plane

curl -ksS -X GET "https://$KAFKA_LB_IP:8080/topics" \
  -H 'accept: application/vnd.kafka.v2+json' | jq '.'

Subscribe the consumer to the Telemetry topic:

Run on: Kubernetes control plane

curl -ksS -X POST \
  "https://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE/subscription" \
  -H 'content-type: application/vnd.kafka.v2+json' \
  -d "{\"topics\": [\"$TOPIC\"]}"

Consume messages from the topic:

Run on: Kubernetes control plane

while true; do
  curl -ksS -X GET \
    "https://$KAFKA_LB_IP:8080/consumers/$GROUP/instances/$INSTANCE/records" \
    -H 'accept: application/vnd.kafka.json.v2+json' | jq '.'
  sleep 2
done

If Telemetry metrics are collected correctly, the output contains JSON-formatted iDRAC Telemetry records.

Verify TLS configuration¶

VictoriaMetrics TLS¶

Run the current external_victoria utility through the Telemetry playbook:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd <OMNIA_SOURCE_PATH>/src/main
./omnia.sh --run telemetry --tags external_victoria

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags external_victoria

The CLI runs src/telemetry/playbooks/telemetry.yml, which imports playbooks/utils/external_victoria_connect.yml. Confirm that the following file contains the VictoriaMetrics endpoints and TLS configuration:

<OMNIA_DATA_PATH>/telemetry/output/<OMNIA_PROJECT_NAME>/external_victoria/external_victoria_connect_details.yml

When TLS is enabled, confirm that ca.crt exists in the same directory. The utility fails if the VictoriaMetrics pods or LoadBalancer endpoints are not available.

Kafka TLS¶

Run the current external_kafka utility through the Telemetry playbook:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd <OMNIA_SOURCE_PATH>/src/main
./omnia.sh --run telemetry --tags external_kafka

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags external_kafka

The CLI runs src/telemetry/playbooks/telemetry.yml, which imports playbooks/utils/external_kafka_connect.yml. Confirm that the following directory contains the connection details and the ca.crt, user.crt, and user.key TLS files:

<OMNIA_DATA_PATH>/telemetry/output/<OMNIA_PROJECT_NAME>/external_kafka/

The utility fails if the Kafka pods, native Kafka endpoint, HTTP Bridge endpoint, or TLS material are unavailable.

View iDRAC metrics in the VictoriaMetrics UI (VMUI)¶

Use the VMUI to validate that iDRAC Telemetry data is being collected and stored successfully.

Verify that the VictoriaMetrics pods are running:
Run on: Kubernetes control plane
```
kubectl get pods -n telemetry -o wide | grep vm
```
Verify that the VictoriaMetrics service is running:
Run on: Kubernetes control plane
```
kubectl get service -n telemetry | grep vm
```

Read victoria_metrics.endpoints.vmselect.ui_url from:

<OMNIA_DATA_PATH>/telemetry/output/<OMNIA_PROJECT_NAME>/external_victoria/external_victoria_connect_details.yml

Access the VMUI in a web browser:
```
<scheme>://<external vmselect loadbalancer IP>:8481/select/0/vmui
```
The generated URL uses https when the victoria-tls-certs Secret exists and http otherwise.

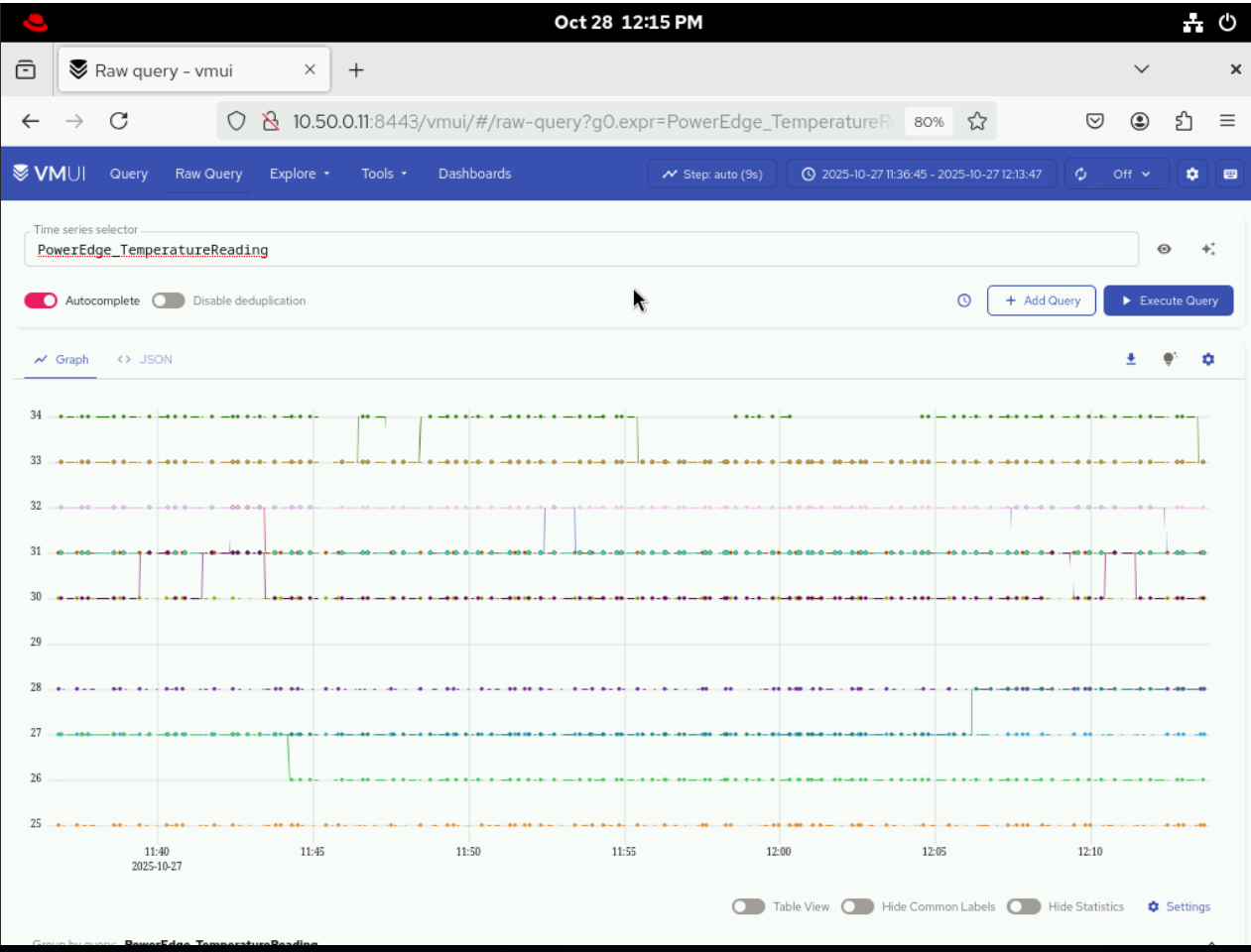

Verify that metrics are reaching VictoriaMetrics by running the following query in the VMUI:
```
{__name__=~"PowerEdge_.*"}
```

Access the MySQL database¶

After ./omnia.sh --run telemetry --tags deploy completes for the service cluster, you can check the MySQL database inside the mysqldb container. This command invokes src/telemetry/playbooks/telemetry.yml.

Get the names of all the iDRAC Telemetry pods:
Run on: Kubernetes control plane
```
kubectl get pods -n telemetry -l app=idrac-telemetry
```
Note

The idrac-telemetry-0 pod is always responsible for collecting the telemetry data of the management nodes (oim, service_kube_control_plane_x86_64, service_kube_node_x86_64, login_node_x86_64, and others).

Connect to MySQL:

Run on: Kubernetes control plane

kubectl exec -it -n telemetry <iDRAC_telemetry_pod_name> -c mysqldb -- mysql -u <MYSQL_USER> -p

When prompted, enter the MySQL password.

At the MySQL prompt, select the idrac_telemetrydb database:
```
USE idrac_telemetrydb;
```
Access the services table:
```
SELECT * FROM services;
```

Next steps¶

Optional: To disable iDRAC Telemetry metrics without removing its infrastructure, set telemetry_sources.idrac.metrics_enabled: false in telemetry_config.yml, and rerun deployment:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd <OMNIA_SOURCE_PATH>/src/main ./omnia.sh --run telemetry --tags deploy
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags deploy

The iDRAC Telemetry pods are scaled down to zero. Its services, ConfigMaps, and persistent data remain available for later use. - To re-enable iDRAC Telemetry metrics, set metrics_enabled: true, and rerun the same deploy command. - To remove iDRAC Telemetry resources and source-owned persistent volumes, see Clean Up Telemetry.

Use Export Kafka Connection Details when an external client needs the Kafka endpoint and certificates.

Troubleshooting¶

The configuration is rejected: Ensure iDRAC is enabled, both targets are present, and mysqldb_storage is not empty.
A BMC is listed as invalid: Confirm the common BMC credentials, Redfish availability, required firmware, and Datacenter license.
A BMC is unreachable: Restore network access from a service worker. The workflow validates from the first worker, retries individual unreachable BMCs from the second worker when one is available, and uses the control-plane VIP when the first worker itself is not SSH-reachable. This is deployment-time validation; the running receiver accepts telemetry reports from iDRAC and does not poll BMC Redfish endpoints. Telemetry does not configure site VLANs or routes.
Kafka or VictoriaMetrics is missing: Confirm the corresponding sink is deployed; both are required by the iDRAC role.
MySQL is not ready: Inspect the mysqldb container and the cleanup-mysql-locks init container logs.
