Configure VAST Telemetry¶

Configure VAST Storage to securely stream Telemetry metrics and logs to the Service Kubernetes cluster.

Overview¶

VAST Telemetry collects storage metrics and logs from an existing VAST Storage system.

Components¶

VAST Prometheus Exporter -- Exposes storage metrics through a Prometheus-compatible HTTPS endpoint. The default port is 443.
vmagent (shared) -- Scrapes the VAST Prometheus endpoint over TLS and forwards metrics to VictoriaMetrics.
VMServiceScrape -- Declares the VAST scrape target for the VictoriaMetrics operator.
VLAgent -- Receives RFC 3164 or RFC 5424 syslog events from VAST and forwards them to VictoriaLogs.
Kubernetes Service and Endpoints -- Represent the external VAST system as the vast-external service in the telemetry namespace.

Omnia does not deploy or configure the VAST system.

Data flow¶

VAST Storage system -> VAST Prometheus Exporter -> vmagent (shared) -> VictoriaMetrics
VAST Storage system -> syslog -> VLAgent -> VictoriaLogs

Supported metrics and logs¶

Metrics category	Metrics collected
Storage performance	Read and write throughput, IOPS per volume, and latency
Capacity	Total, used, and available capacity and thin-provisioning ratios
Volume	Volume state, performance counters, and snapshot metrics
Device	Device health, performance, and error counters
Cluster health	Node status, cluster connectivity, and replication status
Telemetry health	Scrape success, scrape duration, and ingestion latency

For the complete list, see the VAST Metrics reference.

Log category	Logs collected
Storage events	Volume creation or deletion, snapshot events, and capacity threshold alerts
System events	Node health, cluster state changes, and replication events
Alarm events	Critical, warning, and informational alarms
Labels	Hostname, severity, and facility metadata

The configuration provides separate flags for metrics and logs. In the current deployment workflow, keep metrics_enabled: true when collecting VAST logs because VAST source deployment is gated by the metrics flag.

Prerequisites¶

Complete the common Telemetry deployment prerequisites.
Provide a VAST endpoint that the Kubernetes cluster can reach.
Enable the VAST Prometheus metrics API and know its port and path.
For basic authentication, provide vast_username and vast_password when prompted.
For CA-signed TLS, place the PEM CA certificate on the OIM and record its path.

Procedure¶

Step 1: Configure the VAST Appliance¶

Verify that the VAST Prometheus exporter endpoints are accessible:

https://<vast_ip>:443/api/prometheusmetrics/all
https://<vast_ip>:443/api/prometheusmetrics/views
https://<vast_ip>:443/api/prometheusmetrics/devices
https://<vast_ip>:443/api/prometheusmetrics/alarms

(Optional) Configure SSL certificates -- If using CA-signed TLS, set up SSL and CA certificates. For details, see VAST Data Documentation - Security Configuration.

Step 2: Configure VAST Telemetry¶

Enable VAST metrics and VictoriaMetrics in telemetry_config.yml:

telemetry_sources:
  vast:
    metrics_enabled: true
    logs_enabled: false
    collection_targets:
      - victoria_metrics

vast_configuration:
  vast_endpoint: "172.18.44.171"
  vast_metrics_port: 443
  metrics_path: "/api/prometheusmetrics/all"
  scrape_interval: "30s"
  scrape_timeout: "15s"
  tls_mode: "self_signed"
  vast_ca_cert_path: ""
  auth_mode: "basic"

tls_mode accepts self_signed or ca_signed; auth_mode accepts basic or none. When ca_signed is selected, set vast_ca_cert_path to the PEM file.

Step 3: Validate and Deploy VAST Telemetry¶

Run the Telemetry precheck. Choose one execution method; do not run both commands for the same operation.

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags precheck

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags precheck

Validate the Telemetry inputs and collect the required credentials:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags validate

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags validate

Deploy the enabled Telemetry configuration:

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags deploy

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags deploy

To run validation and deployment in one invocation, omit the tag:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd src/main ./omnia.sh --run telemetry
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml
The untagged flow does not run the opt-in precheck. Run step 1 separately when an environment precheck is required.

Step 4: Configure VAST Log Forwarding (Optional)¶

To collect VAST logs:

Keep metrics enabled, set logs_enabled: true, add victoria_logs to collection_targets, and deploy Telemetry. The source role is imported only when metrics are enabled; a logs-only configuration is not supported.

Export the VLAgent target. Choose one execution method; do not run both commands for the same operation.

Using omnia.sh (recommended)Using ansible-playbook

Run on: OIM

cd src/main
./omnia.sh --run telemetry --tags external_victoria

Run on: OIM

source /opt/omnia/activate-omnia.sh
cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks
ansible-playbook telemetry.yml --tags external_victoria

Retrieve the VLAgent LoadBalancer IP:
Run on K8s control plane
```
kubectl get svc -n telemetry | grep vlagent
```
From the left navigation menu of the VAST appliance, select Settings > Notifications.
Select Syslog Setup and complete the fields:
- Syslog Host: Enter the VLAgent LoadBalancer IP address
- Syslog Port: Enter 514 (default)
- Syslog Protocol: Select UDP or TCP based on your requirements
Click Save.

For detailed information on VAST syslog configuration parameters, see VAST Data Documentation - Default Notification Actions.

Configure the existing VAST system to send logs to the generated vlagent.syslog_endpoint. The Telemetry source exposes this endpoint but does not configure VAST itself.

VAST log forwarding is an external system configuration step; the Telemetry source does not deploy a VAST log collector.

Verification¶

Verify VAST Telemetry resources¶

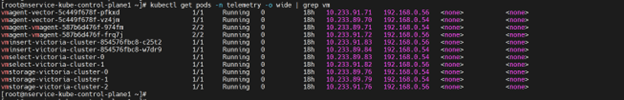

Verify that the VictoriaMetrics pods are running:
Run on: Kubernetes control plane
```
kubectl get pods -n telemetry -o wide | grep vm
```

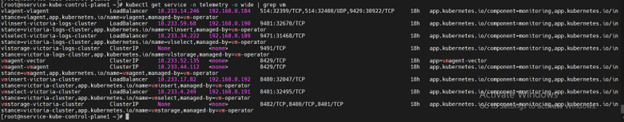

Verify that the VictoriaMetrics services are running:
Run on: Kubernetes control plane
```
kubectl get service -n telemetry -o wide | grep vm
```

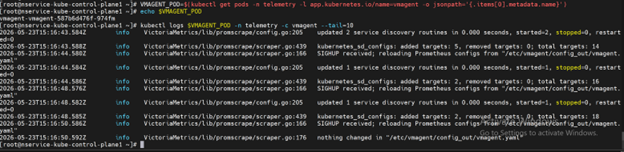

Check the shared vmagent logs for recent VAST scrape activity:

Run on: Kubernetes control plane

VMAGENT_POD=$(kubectl get pods -n telemetry \
  -l app.kubernetes.io/name=vmagent \
  -o jsonpath='{.items[0].metadata.name}')
kubectl logs "$VMAGENT_POD" -n telemetry -c vmagent --tail=10

Confirm that the service for the external VAST system was created:
Run on: Kubernetes control plane
```
kubectl get service vast-external -n telemetry
```

View VAST metrics in VictoriaMetrics UI¶

Identify the external vmselect service:
Run on: Kubernetes control plane
```
kubectl get svc -n telemetry | grep vmselect
```

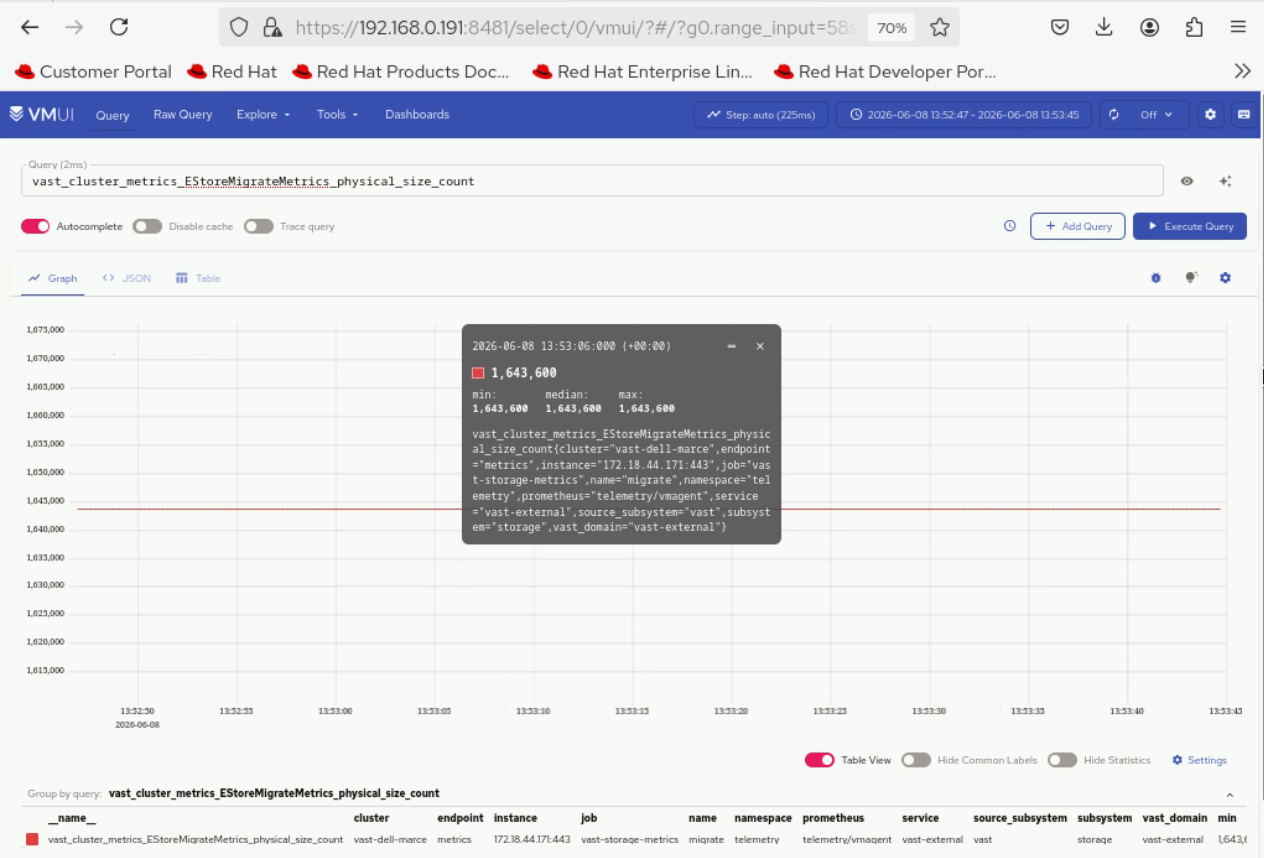

Access the VMUI in a web browser:

https://<external vmselect loadbalancer IP>:8481/select/0/vmui

Query a VAST metric, such as vast_cluster_metrics_EStoreMigrateMetrics_physical_size_count, to confirm that VAST metrics are being collected.

View VAST logs in VictoriaLogs¶

Complete these steps only when VAST log collection is enabled.

Retrieve the VLAgent LoadBalancer IP and configure the VAST system to send syslog messages to it:
Run on: Kubernetes control plane
```
kubectl get svc -n telemetry | grep -E '(vlagent|victoria-logs)'
```
Identify the external vlselect service:
Run on: Kubernetes control plane
```
kubectl get svc -n telemetry | grep vlselect
```

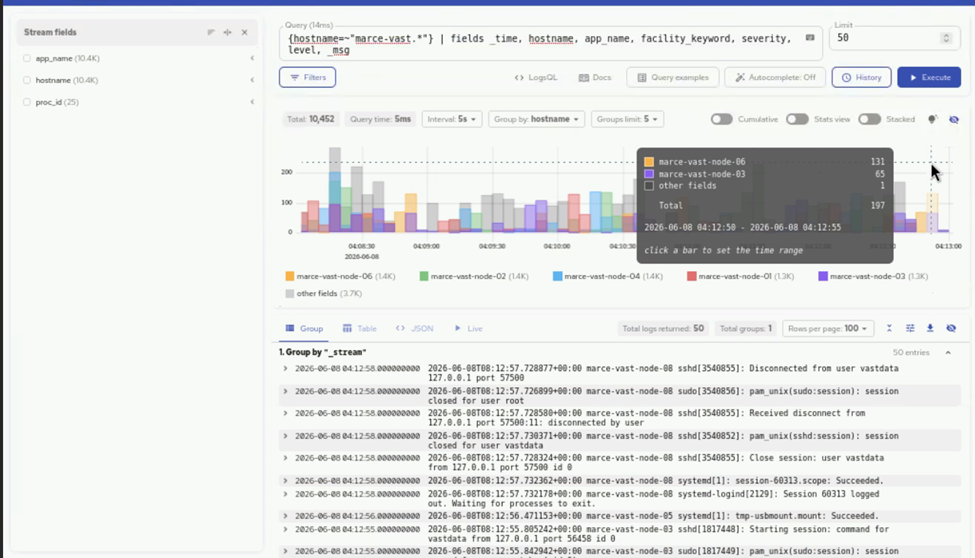

Access the VictoriaLogs UI in a web browser:

https://<external vlselect loadbalancer IP>:9471/select/vmui

Query the VAST hostnames to confirm that logs are reaching VictoriaLogs. For example:
```
{hostname=~"vast-.*"}
```

Confirm sources.vast.metrics: deployed in telemetry_status.yml. This status records the integration resource state; successful metric queries provide the end-to-end validation. When logs are enabled, sources.vast.logs: deployed records the configured log path; a successful log query confirms that the VAST system is sending data.

Next steps¶

Optional: To disable VAST Telemetry metrics and logs without removing its infrastructure, set telemetry_sources.vast.metrics_enabled: false and telemetry_sources.vast.logs_enabled: false in telemetry_config.yml. Then rerun deployment:
Using omnia.sh (recommended)Using ansible-playbook
Run on: OIM
cd <OMNIA_SOURCE_PATH>/src/main ./omnia.sh --run telemetry --tags deploy
Run on: OIM
source /opt/omnia/activate-omnia.sh cd <OMNIA_SOURCE_PATH>/src/telemetry/playbooks ansible-playbook telemetry.yml --tags deploy

The VAST Telemetry pods are scaled down to zero. Its services and ConfigMaps remain available for later use. - To re-enable VAST Telemetry, set the required metrics_enabled or logs_enabled values to true, and rerun the same deploy command. - To remove VAST Telemetry resources and source-owned persistent volumes, see Clean Up Telemetry. - Use Export VictoriaMetrics Connection Details to obtain the query endpoint and UI URL.

Troubleshooting¶

The endpoint is rejected: Set a non-empty VAST IP address and a port from 1 through 65535.
Credentials are missing: Supply VAST credentials when auth_mode: basic.
Credentials are requested with auth_mode: none: The current credential collection is gated by enabled VAST metrics, not by auth_mode. Complete the prompt while this source behavior remains in place.
The CA file is rejected: With tls_mode: ca_signed, provide an existing PEM certificate path on the OIM.
Deployment fails with auth_mode: none and self-signed TLS: The current source can render an empty Secret while still attempting to apply it. Use basic authentication or CA-signed TLS until that source limitation is fixed.
No metrics arrive: Confirm the VAST endpoint and metrics path are reachable from Kubernetes and that authentication and TLS settings are correct.
Logs do not arrive: Confirm that VAST is sending to the exported VLAgent syslog endpoint and that victoria_logs remains in its collection targets.
