Integrate VAST Storage with Omnia Telemetry for Secure Metrics and Logs Streaming

This section describes how to configure VAST Storage to securely stream telemetry metrics and logs to the Service Kubernetes cluster.

This procedure assumes that VictoriaMetrics is deployed in cluster mode in the telemetry namespace of the Service Kubernetes cluster. For more information, see the VictoriaMetrics cluster mode documentation.

Using Omnia, you can deploy VAST Telemetry to collect storage performance metrics and syslog events from VAST Storage appliances. The deployment includes configuring the VAST Telemetry components on the service Kubernetes cluster, integrating with the VAST Prometheus exporter via vmagent, and ingesting syslog events via the VLAgent pipeline.

VAST Telemetry collects storage metrics and logs. VAST Telemetry includes these components:

• VAST Prometheus Exporter: Exposes storage metrics on a Prometheus-compatible HTTPS endpoint (default port 443).

• vmagent (shared): Scrapes the VAST Prometheus exporter endpoint over TLS and forwards metrics to VictoriaMetrics.

• VMServiceScrape CR: Kubernetes custom resource that declares the VAST scrape target for the VictoriaMetrics operator.

• VLAgent: Receives VAST syslog events (RFC 3164/5424) and forwards them to VictoriaLogs.

• Kubernetes Service + Endpoints: Abstracts the external VAST appliance as a discoverable Kubernetes service for vmagent.

Supported Metrics and Logs

Metrics

The VAST metrics include the following:

• Storage Performance: Read/write throughput (bytes/sec), IOPS per volume, latency metrics

• Capacity Metrics: Total capacity, used capacity, available capacity, thin provisioning ratios

• Volume Metrics: Volume state, volume performance counters, snapshot metrics

• Device Metrics: Device health status, device performance, device error counters

• Cluster Health: Node status, cluster connectivity, replication status

• Telemetry Health: Scrape success rate, scrape duration, ingest latency

Logs

The VAST logs include the following:

• Storage Events: Volume creation/deletion events, snapshot events, capacity threshold alerts

• System Events: Node health events, cluster state changes, replication events

• Alarm Events: Critical alarms, warning alarms, informational events

• Events are labeled with hostname, severity, and facility

Prerequisites

Make sure the following prerequisites are met:

• Ensure that the telemetry_config.yml has the entries specific for VAST Telemetry deployment enabled. For more details on configuring telemetry_config.yml, see Configure Deployment Required for iDRAC Telemetry Service.

• Ensure that the provision.yml playbook has been executed successfully with service_kube_control_plane and service_kube_node in the mapping file.

• Ensure the service Kubernetes cluster has sufficient resources to run vmagent (shared instance) and VLAgent.

• Ensure network connectivity between the service Kubernetes cluster and the VAST Storage appliance.

Note

VAST Telemetry supports independent feature flags for metric collection and log collection. You can enable or disable each independently. For more details, see Configure Deployment Required for iDRAC Telemetry Service.

For VAST Metrics Collection

Configure the following settings on the VAST appliance:

The VAST Prometheus exporter must be enabled and accessible from the service cluster.

• Enable VAST Telemetry: Ensure VAST Telemetry is enabled in the VAST cluster configuration.

• Verify Prometheus endpoint: Confirm that the VAST Prometheus exporter is accessible at:

  https://<vast_ip>:443/api/prometheusmetrics/all
  https://<vast_ip>:443/api/prometheusmetrics/views
  https://<vast_ip>:443/api/prometheusmetrics/devices
  https://<vast_ip>:443/api/prometheusmetrics/alarms


• Configure SSL certificates (optional): If using CA-signed TLS, set up SSL and CA certificates in VAST. For detailed steps, see VAST Data Documentation - Security Configuration.

For VAST Log Collection

Configure the following settings on the VAST appliance:

• Enable syslog forwarding: Configure VAST to send syslog messages to the VLAgent LoadBalancer IP:

  1. From the left navigation menu, select Settings → Notifications

  2. Select Syslog Setup and complete the fields:

     • Syslog Host: Enter the VLAgent LoadBalancer IP address

     • Syslog Port: Enter 514 (default)

     • Syslog Protocol: Select UDP or TCP based on your requirements

  3. Click Save

For detailed information on VAST syslog configuration parameters, see VAST Data Documentation - Default Notification Actions.

• Set VLAgent LoadBalancer IP: Configure the VLAgent LoadBalancer IP address for syslog delivery. Retrieve the VLAgent external IP from the service Kubernetes cluster:

  kubectl get svc -n telemetry | grep vlagent


Verify VAST Telemetry Flow

This section outlines the steps to verify VAST telemetry data in VictoriaMetrics.

View Collected VAST Telemetry Data using VictoriaMetrics UI (VMUI) - Cluster Mode Deployment

After applying the telemetry.yml configuration using the VictoriaMetrics deployment mode as cluster, use the VictoriaMetrics UI (VMUI) to validate that VAST telemetry data is being collected and stored successfully in a cluster mode VictoriaMetrics deployment. For more details, see VictoriaMetrics Cluster deployment documentation.

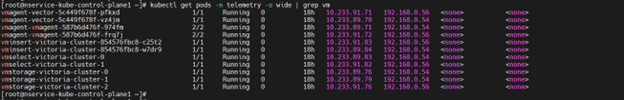

1. Run the following command to verify that the VictoriaMetrics pod is running:

   kubectl get pods -n telemetry -o wide | grep vm

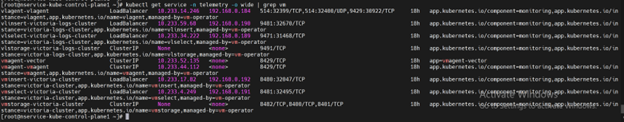

2. Run the following command to verify that the VictoriaMetrics service is running:

   kubectl get service -n telemetry -o wide | grep vm

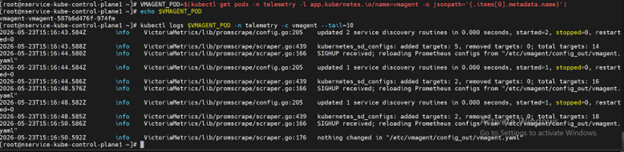

3. Run the following command to verify VMagent logs for VAST scraping to view recent logs:

   VMAGENT_POD=$(kubectl get pods -n telemetry -l app.kubernetes.io/name=vmagent -o jsonpath='{.items[0].metadata.name}')
   kubectl logs $VMAGENT_POD -n telemetry -c vmagent --tail=10


4. Note the External IP and port number of the VictoriaMetrics service. The external IP and port number will be used to access the VictoriaMetrics UI (VMUI):

   kubectl get svc -n telemetry | grep vmselect

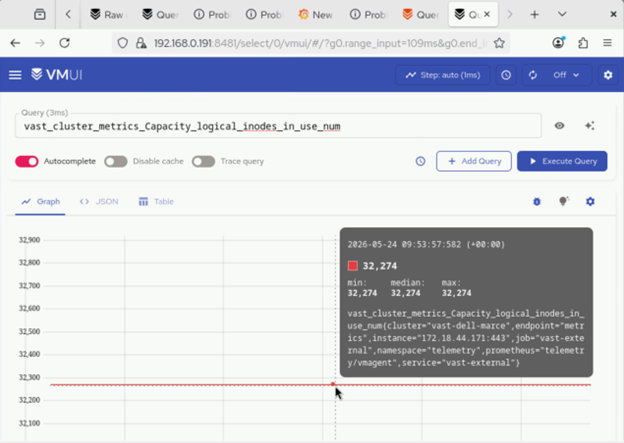

5. Access the VMUI in a web browser using:

   https://<external vmselect loadbalancer IP>:8481/select/0/vmui


Key VAST Metrics

Key VAST Metrics

Metric Name	Description	Unit
vast_volume_read_throughput	Read throughput per volume	bytes/sec
vast_volume_write_throughput	Write throughput per volume	bytes/sec
vast_volume_read_iops	Read IOPS per volume	operations/sec
vast_volume_write_iops	Write IOPS per volume	operations/sec
vast_volume_read_latency	Read latency per volume	milliseconds
vast_volume_write_latency	Write latency per volume	milliseconds
vast_capacity_total	Total storage capacity	bytes
vast_capacity_used	Used storage capacity	bytes
vast_capacity_available	Available storage capacity	bytes
vast_volume_state	Volume operational state	state
vast_device_health	Device health status	state
vast_cluster_node_status	Cluster node status	state
vast_alarm_count	Active alarm count by severity	count

View VAST Logs using VictoriaLogs

1. Configure the VLAgent LoadBalancer IP address for syslog delivery. Retrieve the VLAgent LoadBalancer IP and configure it on the VAST appliance by following the steps outlined in the prerequisites section above:

   kubectl get svc -n telemetry | grep -E "(vlagent|victoria-logs)"


2. Retrieve the external IP and port of the vlselect service:

   kubectl get svc -n telemetry | grep vlselect

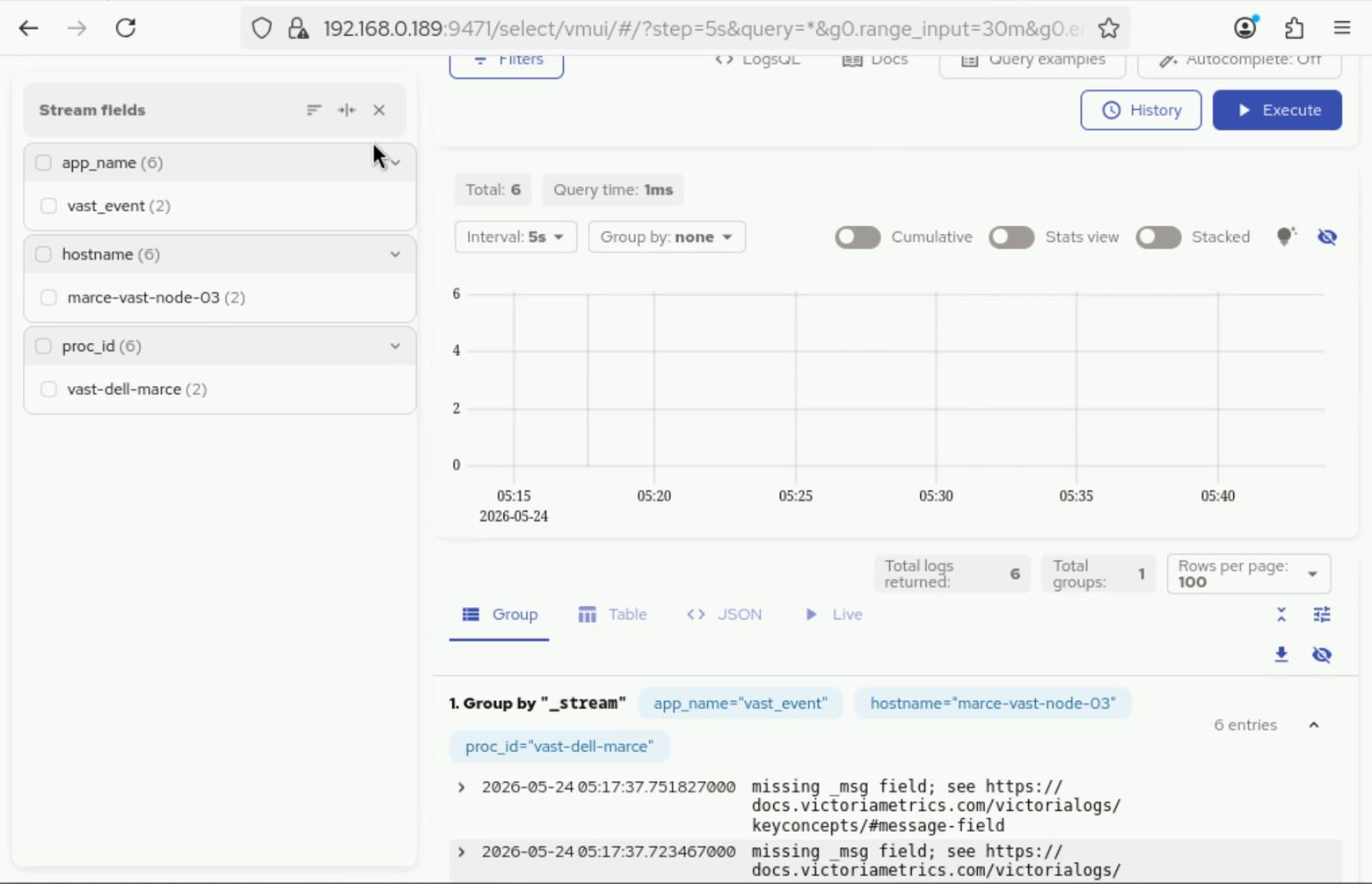

3. Access the VictoriaLogs UI in a web browser using:

   https://<external vlselect loadbalancer IP>:9471/select/vmui
