Execute the Local Repo Playbook

The local repository playbook (local_repo.yml) downloads and saves the software packages/images to the Pulp container, which all cluster nodes can access.

Configurations made by the playbook

  • With repo_config set to always in /opt/omnia/input/project_default/software_config.json, all images and artifacts will be downloaded to the Pulp container present on the NFS share.

  • If repo_config is set to always, the OIM serves as the default Pulp registry.

Playbook Execution

To create local repositories on the Pulp container, execute the local_repo.yml playbook using the following command:

ssh omnia_core
cd /omnia/local_repo
ansible-playbook local_repo.yml

Metadata Report

After a successful execution of the local_repo.yml playbook, a metadata file called localrepo_metadata.yml is created under the /opt/omnia/offline_repo/.data/ directory. This file captures the repo_config (always, partial) details provided during the playbook execution. If the local_repo.yml playbook is re-run, it compares the current repository policy with the previously captured metadata. Based on this, there can be two scenarios:

  • If a change in policy is detected, you will be prompted to confirm whether to proceed with the updated configuration or not.

    • If you agree, the playbook continues with the updated policy and after successful execution, it updates the metadata file with the new repository policy.

    • If you decline, the playbook execution is aborted and the metadata file remains unchanged.

  • If there is no change in policy, the playbook execution proceeds without prompting. The metadata file remains unchanged.

Check Status of the Packages

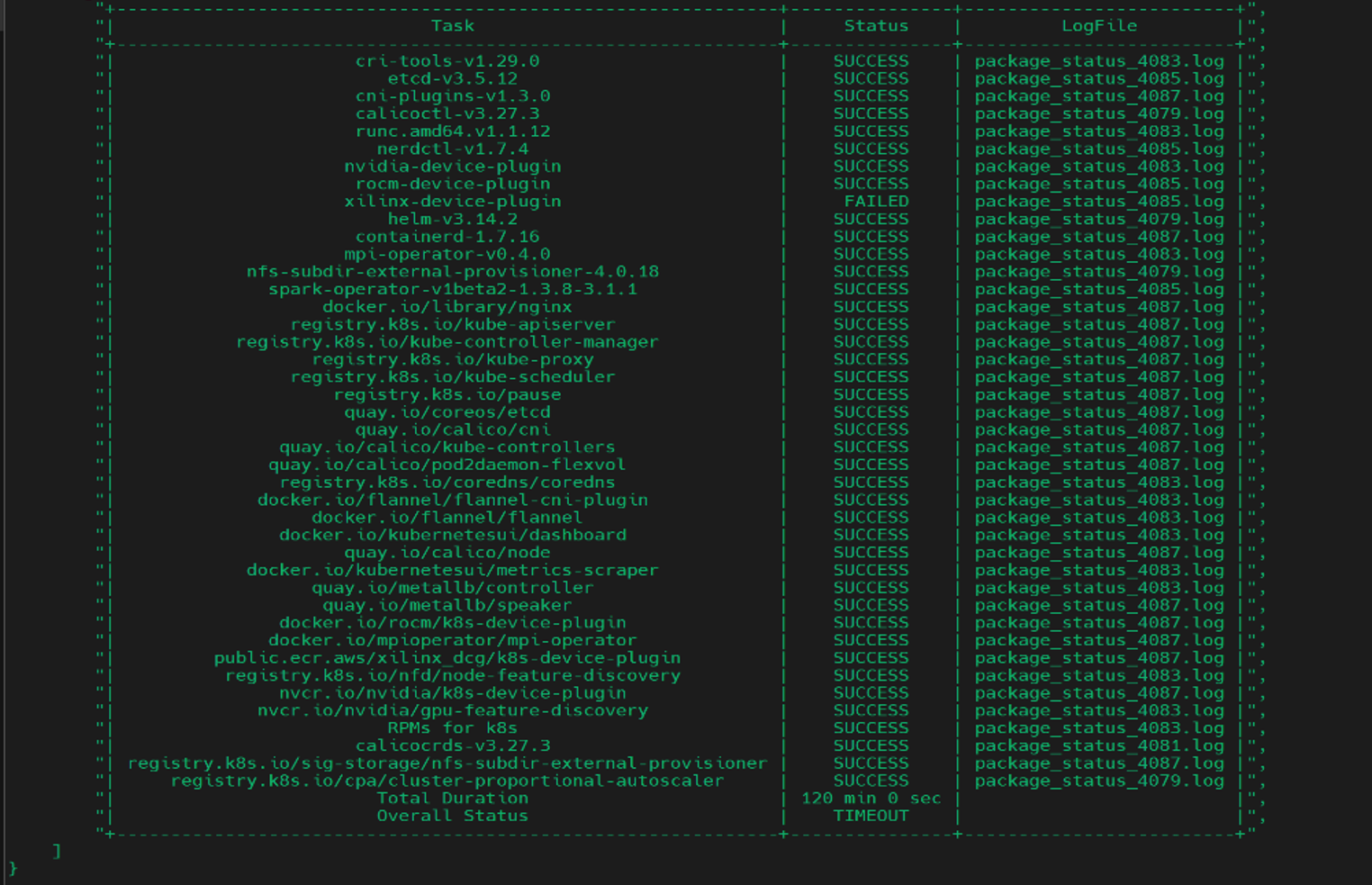

After local_repo.yml has been executed, a status report is displayed containing the status for each downloaded package along with the complete playbook execution time. Here’s an example of what that might look like:

../../../_images/local_repo_status.png

SUCCESS: The package has been successfully downloaded to the Pulp container.

FAILED: The package couldn’t be downloaded successfully.

Note

  • The local_repo.yml playbook execution fails if any software package has a FAILED status. In such a scenario, the user needs to re-run the local_repo.yml playbook.

  • If any software package fails to download during the execution of this playbook, other scripts/playbooks that rely on the package may also fail.

  • To download additional software packages after the playbook has been executed, simply update the /opt/omnia/input/project_default/software_config.json with the new software information and re-run the local_repo.yml playbook.

Log Files

The local_repo.yml playbook generates and provides two types of log files as part of its execution:

  1. standard.log: This log file is present in the /opt/omnia/log/local_repo directory, and contains the overall status of the local_repo.yml playbook execution.

  2. Package based logs: Each package download initiated by the local_repo.yml playbook comes with its own log file. These log files can be accessed from /opt/omnia/log/local_repo.

Note

To view the log files in .csv format, navigate to /opt/omnia/log/local_repo/<arch_type>/<sw_name>/status.csv.

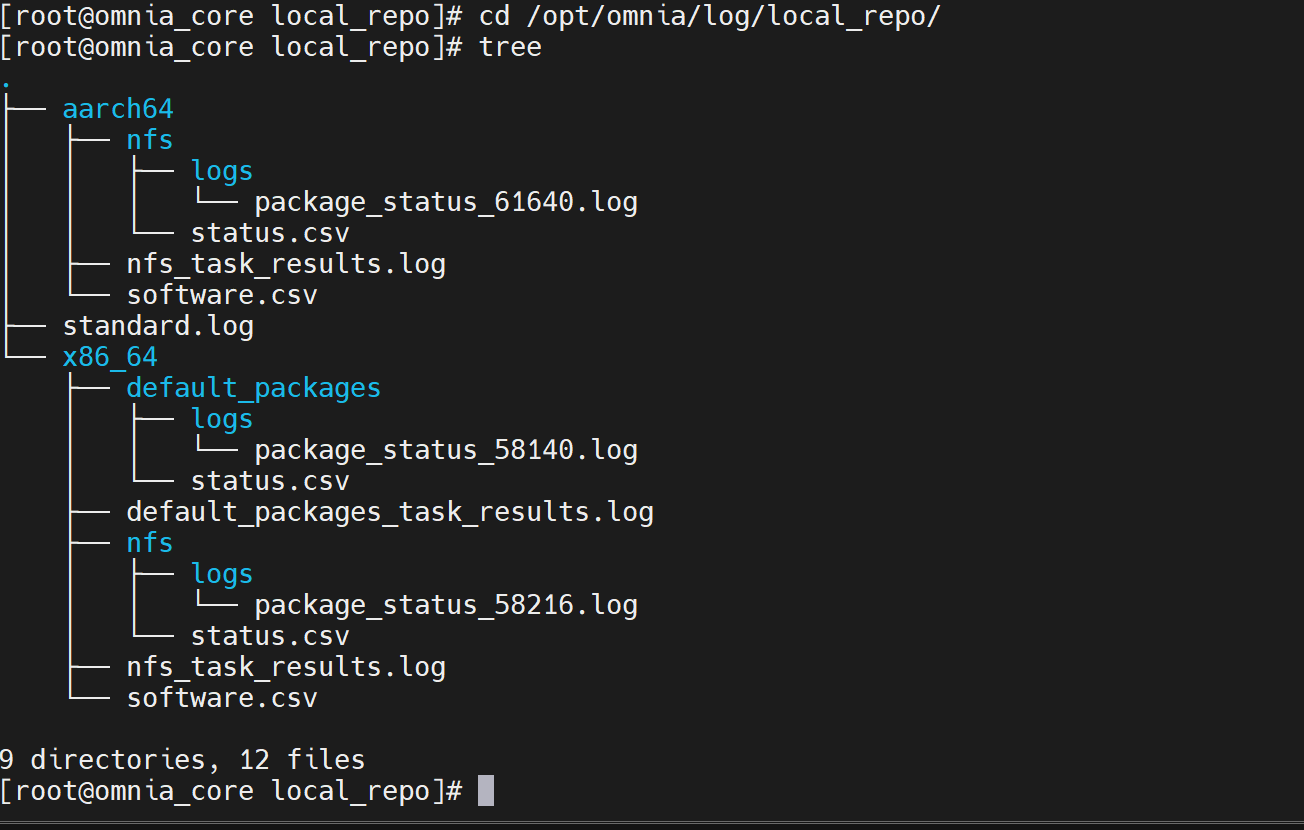

Here’s an example of how the log files are organized in the /opt/omnia/log/local_repo directory:

../../../_images/local_repo_log.png

Updating Local Repositories after Modifying JSON Files

After the execution of the local_repo.yml playbook is complete, any modifications made to a <software_name>.json file (for example, service_k8s.json, slurm_custom.json, additional_software.json) will not be reflected in the local repositories automatically. To apply the changes, you must re-run the local_repo.yml playbook.

Command Format

ansible-playbook local_repo.yml
