Deploy CSI drivers for Dell PowerScale Storage Solutions

Dell PowerScale is a flexible and secure scale-out NAS (network attached storage) solution designed to simplify storage requirements for AI and HPC workloads. To enable the PowerScale storage solution on the Kubernetes clusters, Omnia installs the Dell CSI PowerScale driver (version 2.15.0) on the nodes using helm charts. Once the PowerScale CSI driver is installed, the PowerScale nodes can be connected to the Kubernetes clusters for storage requirements. To know more about the CSI PowerScale driver, click here.

Note

Omnia doesn’t configure any PowerScale device via OneFS (operating system for PowerScale). Omnia configures the deployed Kubernetes cluster to interact with the PowerScale storage.

PowerScale SmartConnect [Optional]

To utilize the PowerScale SmartConnect hostname, it is necessary for the user to have an upstream DNS server that includes delegation mappings of hostname to PowerScale IP addresses. During the provisioning of cluster nodes, users can specify the IP of the upstream DNS server in the /opt/omnia/input/project_default/network_spec.yml file. This ensures that the Omnia cluster recognizes and is aware of the upstream DNS server, enabling the use of PowerScale SmartConnect hostname functionality. For example:
```
---
    Networks:
    - admin_network:
        oim_nic_name: <network name>
        netmask_bits: "24"
        primary_oim_admin_ip: "172.16.107.254"
        primary_oim_bmc_ip: ""
        dynamic_range: "172.16.107.201-172.16.107.250"
        dns: [<'upstream DNS server'>]

Example: dns: ["10.x.x.x", "11.x.x.x"]
```
If you did not specify the upstream DNS server during the provisioning process and wish to utilize PowerScale SmartConnect afterwards, first add the upstream DNS server IP to the DNS entry in /opt/omnia/input/project_default/network_spec.yml and then run the discovery.yml playbook again.

Prerequisites

Ensure that the storage and data networks are configured correctly via DHCP.
Upstream DNS resolution must be available from both the admin (PXE) and storage networks.
Verify that the PowerScale system is operational.

Download the secret.yaml file template from the following command:

wget raw.githubusercontent.com/dell/csi-powerscale/refs/heads/release/v2.15.0/samples/secret/secret.yaml

Update the following parameters in the secret.yaml file as per your cluster details and keep the rest as default values. For example:
- clusterName: <desired cluster name>
- endpoint: <endpoint_IP>
Note

If PowerScale SmartConnect hostname is configured, user can provide the PowerScale hostname for endpoint. Otherwise user can provide PowerScale IP address as well. Ensure that the Powerscale hostname is reachable from OIM.
- endpointPort: <endpoint_port>
- isDefault: true
Note

In secret.yaml file, do not update or change the values for the username and password field. It is being read from the omnia_config_credentials.yml file.

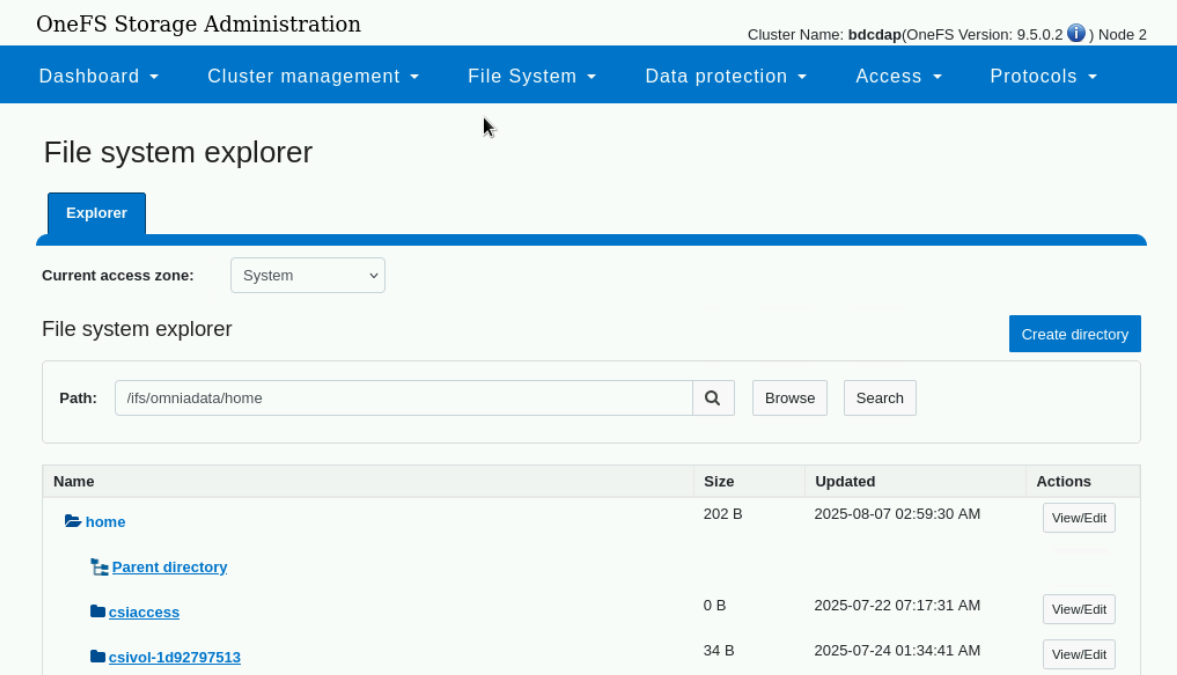

Reference values from OneFS portal:

Download the values.yaml files template using the following command:

wget https://raw.githubusercontent.com/dell/helm-charts/csi-isilon-2.15.0/charts/csi-isilon/values.yaml

Update the following parameters in the values.yaml file and keep the rest as default values. Refer the below sample values:
- controllerCount: 1
- replication:

  enabled: false
- snapshot:

  enabled: true
- resizer:

  enabled: false
- healthMonitor:

  enabled: false
- dnsPolicy: Default
- enableQuota: false
- endpointPort:8080
- skipCertificateValidation: true
- isiAccessZone: System
- isiPath: /ifs/data/csi
Ensure that get_config_credentials.yml playbook has been executed and the omnia_config_credentials file has been generated. Once that’s done, add the values for csi_username and csi_password to that file.
Enable auth_basic for the PowerScale devices: Omnia authenticates and connects with PowerScale devices using basic authentication. To check and enable basic authentication from PowerScale’s end, do the following:
1. Establish an SSH connection with the PowerScale node.
2. Execute the following command:
  cat /usr/local/apache2/conf/webui_httpd.conf | grep -A 20 "# Platform API"
3. Check the response and see if IsiAuthTypeBasic Off is displayed. If yes, it means that basic auth is not enabled from PowerScale. Use the following command to activate it:
  isi_gconfig -t web-config auth_basic=true

Note

In order to integrate PowerScale solution to the deployed Kubernetes cluster, Omnia requires the following fixed parameter values in values.yaml file:

controllerCount: 1
Replication: false
Snapshot: true
skipCertificateValidation: true

Note

Once the PowerScale CSI driver has been deployed, the parameters in the values.yaml can’t be changed. If the user wants to modify the values.yaml file, they must first uninstall the PowerScale CSI driver from the steps mentioned in the Uninstallation section and then manually re-install the Powerscale with the following commands:

kubectl create namespace isilon
kubectl create secret generic isilon-creds -n isilon –from-file=config=”/opt/omnia/csi-driver-powerscale/secret.yaml”
kubectl apply -f /opt/omnia/csi-driver-powerscale/empty_isilon-certs.yaml
cd csi-powerscale/external-snapshotter/

kubectl apply -f client/config/crd/

kubectl apply -f deploy/kubernetes/snapshot-controller/
./csi-install.sh –namespace isilon –values /opt/omnia/csi-driver-powerscale/values.yaml
kubectl apply -f /opt/omnia/csi-driver-powerscale/ps_storage_class.yml

Steps

Add the csi_driver_powerscale entry along with the driver version to the /opt/omnia/input/project_default/software_config.json file:
```
{"name": "csi_driver_powerscale", "version":"v2.15.0", "arch": ["x86_64"]}
```

Note

By default, the csi_driver_powerscale entry is not present in the software_config.json.

Execute the local_repo.yml playbook to download the required artifacts to the OIM:
```
cd local_repo
ansible-playbook local_repo.yml
```
Add the filepath of the secret.yaml and values.yaml file to the csi_powerscale_driver_secret_file_path and csi_powerscale_driver_values_file_path variables respectively, present in the /opt/omnia/input/project_default/omnia_config.yml file.
Execute the discovery.yml playbook to install the PowerScale CSI driver on the service_k8s_clusters. See High Availability. To check the prerequisites for discovery.yml, see Discovery and Prerequisites

Service Kubernetes cluster
cd discovery
ansible-playbook discovery.yml

Expected Results

After the successful execution of the discovery.yml playbook, the PowerScale CSI driver is deployed in the isilon namespace.

Along with PowerScale driver installation a storage class named ps01 is also created. The details of the storage class are as follows:

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata :
    name: <storage class name>
provisioner: csi-isilon.dellemc.com
reclaimPolicy: Retain
allowVolumeExpansion: true
volumeBindingMode: Immediate
parameters :
    clusterName: <powerscale cluster name > #optional
    AccessZone: System
    AzServiceIP: <PowerScale SmartConnect hostname or PowerScale IP> #optional
    Isipath: <isipath configured in powerscale > #sample: /ifs/data/csi/
    RootClientEnabled: "true"
    csi.storage.k8s.io/fstype: "nfs"

If there are errors during CSI driver installation, uninstall the CSI driver first as per the steps mentioned in the Uninstallation section. Ensure that the prerequisites are met. Manually re-install the Powerscale with the following commands:

kubectl create namespace isilon

kubectl create secret generic isilon-creds -n isilon --from-file=config="/opt/omnia/csi-driver-powerscale/secret.yaml"

kubectl apply -f /opt/omnia/csi-driver-powerscale/empty_isilon-certs.yaml
cd csi-powerscale/external-snapshotter/
    kubectl apply -f client/config/crd/
    kubectl apply -f deploy/kubernetes/snapshot-controller/

./csi-install.sh --namespace isilon --values /opt/omnia/csi-driver-powerscale/values.yaml

kubectl apply -f /opt/omnia/csi-driver-powerscale/ps_storage_class.yml

Post Installation

[Optional] Create custom storage class

If user wants to create a custom storage class, they can do so by following the sample storage class template.

Sample storageclass template:

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata :
    name: <storage class name>
provisioner: csi-isilon.dellemc.com
reclaimPolicy: Retain
allowVolumeExpansion: true
volumeBindingMode: Immediate
parameters :
    clusterName: <powerscale cluster name > #optional
    AccessZone: System
    AzServiceIP: <PowerScale SmartConnect hostname or PowerScale IP> #optional
    Isipath: <isipath configured in powerscale > #sample: /ifs/data/csi/
    RootClientEnabled: "true"
    csi.storage.k8s.io/fstype: "nfs"

Note

If PowerScale SmartConnect hostname is configured and the delegated host list is set up in the external DNS server, then the user can provide the PowerScale hostname for AzServiceIP. Otherwise user can provide PowerScale IP address as well.
If there are any changes to the storage class parameters in a PowerScale cluster, the user must update the existing storage class or create a new one as needed.

Apply storage class

Use the following command to apply the storageclass:

kubectl apply -f <storageclass name>

Create Persistent Volume Claim (PVC)

Once the storage class is created, the same can be used to create PVC.

Sample deployment with PVC:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-powerscale
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 1Gi
  storageClassName: ps01
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-busybox-01
spec:
  strategy:
    type: Recreate
  replicas: 1
  selector:
    matchLabels:
      app: deploy-busybox-01
  template:
    metadata:
      labels:
        app: deploy-busybox-01
    spec:
      containers:
        - name: busybox
          image: docker.io/library/busybox:1.36
          command: ["sh", "-c"]
          args: ["while true; do touch /data/datafile; rm -f /data/datafile; done"]
          volumeMounts:
            - name: data
              mountPath: /data
      volumes:
        - name: data
          persistentVolumeClaim:
            claimName: pvc-powerscale

Apply the deployment manifest along with PVC

Use the following command to apply the manifest:

kubectl apply -f <manifest_filepath>

Expected Result:

Once the above manifest is applied, a PVC is created under name pvc-powerscale and is in Bound status. Use the kubectl get pvc -A command to bring up the PVC information. For example:

root@node001:/opt/omnia/csi-driver-powerscale/csi-powerscale/dell-csi-helm-installer# kubectl get pvc -A
NAMESPACE   NAME                STATUS   VOLUME           CAPACITY   ACCESS MODES   STORAGECLASS   VOLUMEATTRIBUTESCLASS   AGE
default     pvc-powerscale      Bound    csivol-98d3e7631d       1Gi        RWX            ps01           <unset>                 27h

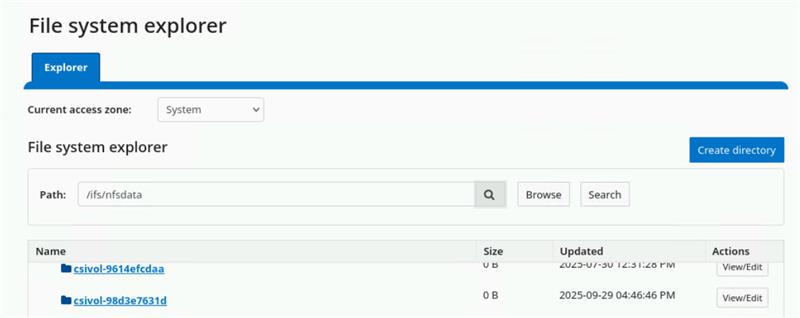

User can also verify the same information from the OneFS portal. In the sample image below, it is mapped with the VOLUME entry from the above example: csivol-98d3e7631d:

Uninstallation

To uninstall the PowerScale CSI driver manually, do the following:

Login to the service_kube_control_plane node.
Execute the following command to switch to the dell-csi-helm-installer directory:
```
cd /opt/omnia/csi-driver-powerscale/csi-powerscale/dell-csi-helm-installer
```
Once you’re inside the dell-csi-helm-installer directory, use the following command to trigger the csi-uninstall script:
```
./csi-uninstall.sh --namespace isilon
```
After running the previous command, the PowerScale driver is removed. But, the secret and the created PVC are not removed. If users want to remove them, they need to do it manually from the “isilon” namespace.
If users don’t want to use PowerScale anymore, they can remove the following as well:
1. Remove the PowerScale secret by executing the following commands one after the other:
  kubectl delete secret isilon-creds -n isilon

  kubectl delete secret isilon-certs-0 -n isilon
2. Remove any custom user deployment and PVC that was using PowerScale storage class.
3. Remove the PowerScale storage class.

Note

In case OneFS portal credential changes, users need to perform following steps to update the changes to the secret.yaml manually:

Update the secret.yaml file with the changed credentials.
Login and copy the secret.yaml file to the kube_control_plane.
Delete the existing secret by executing the following command:
```
kubectl delete secret isilon-creds -n isilon
```

Create the new secret from the updated secret.yaml file by executing the following command:

kubectl create secret generic isilon-creds -n isilon --from-file=config=<updated secret.yaml filepath>

Delete the snapshot controller deployment:

kubectl delete deployments snapshot-controller -n kube-system
