Troubleshooting Guide

A structured guide for diagnosing and resolving issues across Omnia deployment, provisioning, Kubernetes, Slurm, storage, authentication, and telemetry workflows.

1. Core Container & OIM Issues 

1.1 Omnia Core Container Fails to Deploy 

Symptoms

omnia.sh aborts early
podman pull fails
Container starts but cannot write to shared path

Causes

Podman pull/auth issues
Time synchronization failure
Invalid OIM hostname
NFS/SELinux permission issues

Resolution

Check container status:

podman ps --format 'table {{.Names}}\t{{.Status}}'

Check logs:

podman logs -n 200 omnia_core

Check time synchronization:

timedatectl status
chronyc tracking || chronyc sources -v

Validate OIM hostname (no dots, underscores, commas, uppercase, leading/trailing hyphens, or leading digits; FQDN ≤64 chars).

Validate NFS mount and SELinux labeling:

podman run --rm -v /shared:/mnt:z registry.access.redhat.com/ubi10/ubi sh -lc 'touch /mnt/.rw'

Re-run omnia.sh.

1.2 Prepare OIM Failures 

Symptoms

Certificate or TLS failures
Expected container not created
Service is running but unreachable

Resolution

Verify container inventory:

podman ps --format 'table {{.Names}}\t{{.Image}}\t{{.Status}}'

1.3 Common Container Debugging Tools 

Use the following commands to troubleshoot container issues across Omnia services.

To view list of all Omnia containers, run the following command:

podman ps -a

To view container logs, run the following command:

podman logs -n 200 <container>

To test outbound connectivity from a container, run the following command:

podman exec -it <container> sh -lc 'curl -I https://example.com'

1.4 Encrypted Parameters Management 

To view encrypted parameters:

ansible-vault view omnia_config_credentials.yml --vault-password-file .omnia_config_credentials_key

To edit encrypted parameters:

ansible-vault edit omnia_config_credentials.yml --vault-password-file .omnia_config_credentials_key

2. PXE Boot & Provisioning Issues 

2.1 Node Hangs at nm-wait-online-initrd.service 

Cause

IP address conflict with old node.

Resolution

Ensure old node is powered off/disconnected
Verify IP address is unused
Re-run discovery.yml

2.2 PXE Boot Timeout (TFTP/Service Timeout)

Causes

PXE NIC not configured
Extra NIC interfering
Multiple PXE servers

Resolution

Configure BIOS → Network Settings → PXE Device
Assign correct active NIC
Remove/add NIC only after boot completion

2.3 Target Server Unreachable After PXE Boot 

Causes

POST errors
F1 hardware prompts
Boot stalls

Resolution

Log in to iDRAC
Clear errors or disable POST
Hard reboot
Disable PXE temporarily if needed

2.5 BCM57504 Card PXE Boot Failure with Firmware 23.x.x and Above 

Cause

iPXE version used in Omnia 2.1 does not support firmware version 23.x.x and above for Broadcom BCM57504 card.

Resolution

Downgrade the BCM57504 card firmware to Network_Firmware_P5P4D_LN64_22.92.07.50_02 and perform an A/C powercycle on the system.

3. Local Repository & Pulp Issues 

3.1 local_repo.yml Download Failures 

Causes

Incorrect URLs in software JSON
Docker pull limit
Insufficient disk space

Resolution

Correct URLs
Provide valid Docker credentials
Ensure adequate disk on Pulp NFS
Re-run the playbook

3.2 Failure When Re-run Multiple Times 

Cause

Pulp container resource saturation.

Resolution

Allow the system to idle ~1 hour before re-running.

3.3 Pulp Sync/Publish “No space left on device”

Cause

NFS mount full.

Resolution

Increase NFS size Set concurrency to 1:

PULP_SYNC_CONCURRENCY = 1
PULP_PUBLISH_CONCURRENCY = 1

Re-run playbook

3.4 EPEL Repository Instability 

Resolution

If no packages depend on EPEL → remove EPEL URL
If required → wait for stability or host EPEL packages locally

3.5 Intermittent Local Repository sync failure due to non-persistent iptables rules on OIM 

Cause: The issue is caused by iptables rules on the OIM node not being persistent. After OIM startup, restrictive iptables policies block outbound internet access from containers.

Resolution:

As a workaround to unblock repository synchronization, run the following commands to relax iptables default policies on the OIM node:

iptables -P INPUT ACCEPT
iptables -P FORWARD ACCEPT
iptables -P OUTPUT ACCEPT

4. Kubernetes Cluster & Pod Issues 

4.1 ImagePullBackOff / ErrImagePull 

Causes

Docker rate limits
Local repo missing images

Resolution

Add credentials to omnia_config_credentials.yml
Ensure local_repo.yml succeeded

For more information, click here

4.2 Pods Not in Running State 

Resolution

kubectl get pods --all-namespaces
kubectl delete pod <pod-name>

4.3 Cluster Nodes Reboot 

Resolution

Wait 15 minutes Verify:

kubectl get nodes
kubectl cluster-info

4.4 DNS Unresponsive / CoreDNS Issues 

Resolution

Restart CoreDNS:

kubectl rollout restart deployment coredns -n kube-system

4.5 PowerScale SmartConnect DNS Resolution Issues 

Cause

CoreDNS unaware of external SmartConnect zone.

Resolution

Edit ConfigMap:

kubectl -n kube-system edit configmap coredns

Add a hosts block:

hosts {
10.x.x.x management.ps.com
fallthrough
}

Restart CoreDNS.

4.6 Control-plane Join Fails Due to Certificate Key Expiry 

Cause

kubeadm certificate key expires (~2 hours).

Resolution

On a healthy control-plane:

{{ k8s_client_mount_path }}/generate-control-plane-join.sh

Reboot the failed node.

5. Storage & NFS Issues 

5.1 NFS-Client Provisioner CrashLoopBackOff 

Cause

NFS server not active at server_share_path.

Resolution

Ensure NFS server is active and reachable.

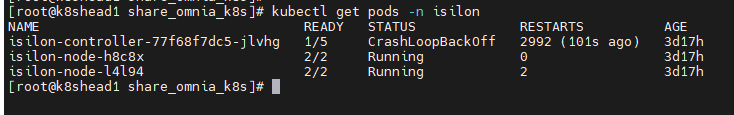

5.2 PowerScale CSI Controller Issues 

Symptoms

PowerScale (Isilon) CSI controller pod in CrashLoopBackOff after node reboot.

Resolution

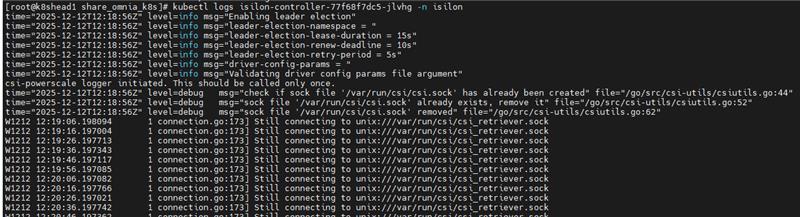

Inspect recent logs from the controller deployment:

kubectl logs deploy/isilon-controller -n isilon --all-containers=true | tail -n 60

Restart the Isilon controller deployment:

kubectl rollout restart deployment isilon-controller -n isilon

Restart the Isilon node daemonset:

kubectl rollout restart daemonset isilon-node -n isilon

5.3 Missing PowerScale CSI Driver 

Cause

Driver not listed in software_config.json.

Required Entry

{
  "name": "csi_driver_powerscale",
  "version": "v2.15.0",
  "arch": ["x86_64"]
}

For more information on deploying the Dell CSI-PowerScale driver, see Deploy CSI drivers for Dell PowerScale Storage Solutions

6. Slurm Issues 

6.1 Nodes Entering DRAINED State 

Cause

Epilog script not executable.

Resolution

chmod 0755 /etc/slurm/epilog.d/logout_user.sh
scontrol reconfigure

6.2 Slurm Nodes Cannot Contact Controller 

Cause

Nodes booted before controller.

Resolution

scontrol reconfigure
systemctl restart slurmd

6.3 Missing Controller Groups / Missing slurm.conf 

Resolution

Update pxe_mapping.csv with controller groups
Choose different backup or create new one

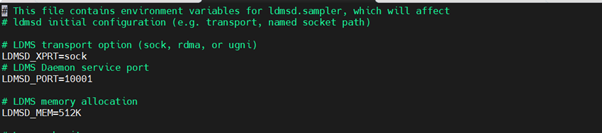

6.4 LDMS Metrics Missing 

Checks

kubectl logs -n telemetry nersc-ldms-aggr-0
kubectl logs -n telemetry nersc-ldms-store-slurm-cluster-0

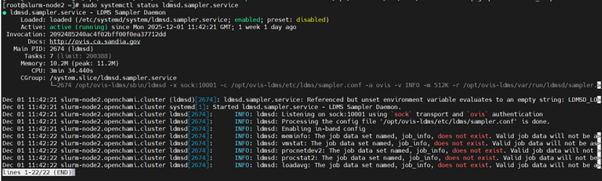

sudo systemctl status ldmsd.sampler.service

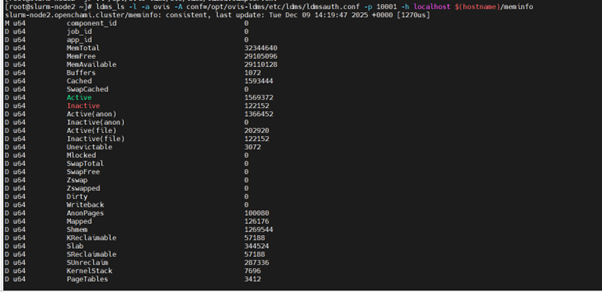

/opt/ovis-ldms/sbin/ldms_ls ...

7. Telemetry Issues 

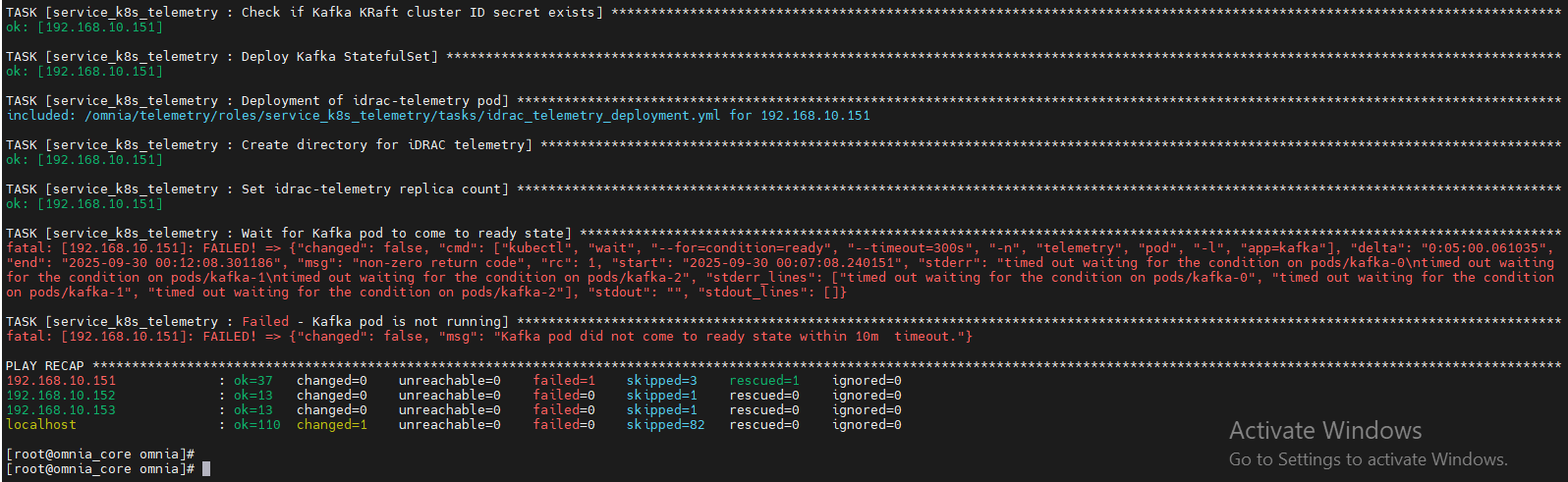

7.1 Kafka Pods CrashLoopBackOff 

Causes

No service kube nodes
Missing CSI driver
PV full

Resolution

Ensure service kube nodes are booted
Add PowerScale CSI driver
Increase Kafka volume and configure log retention

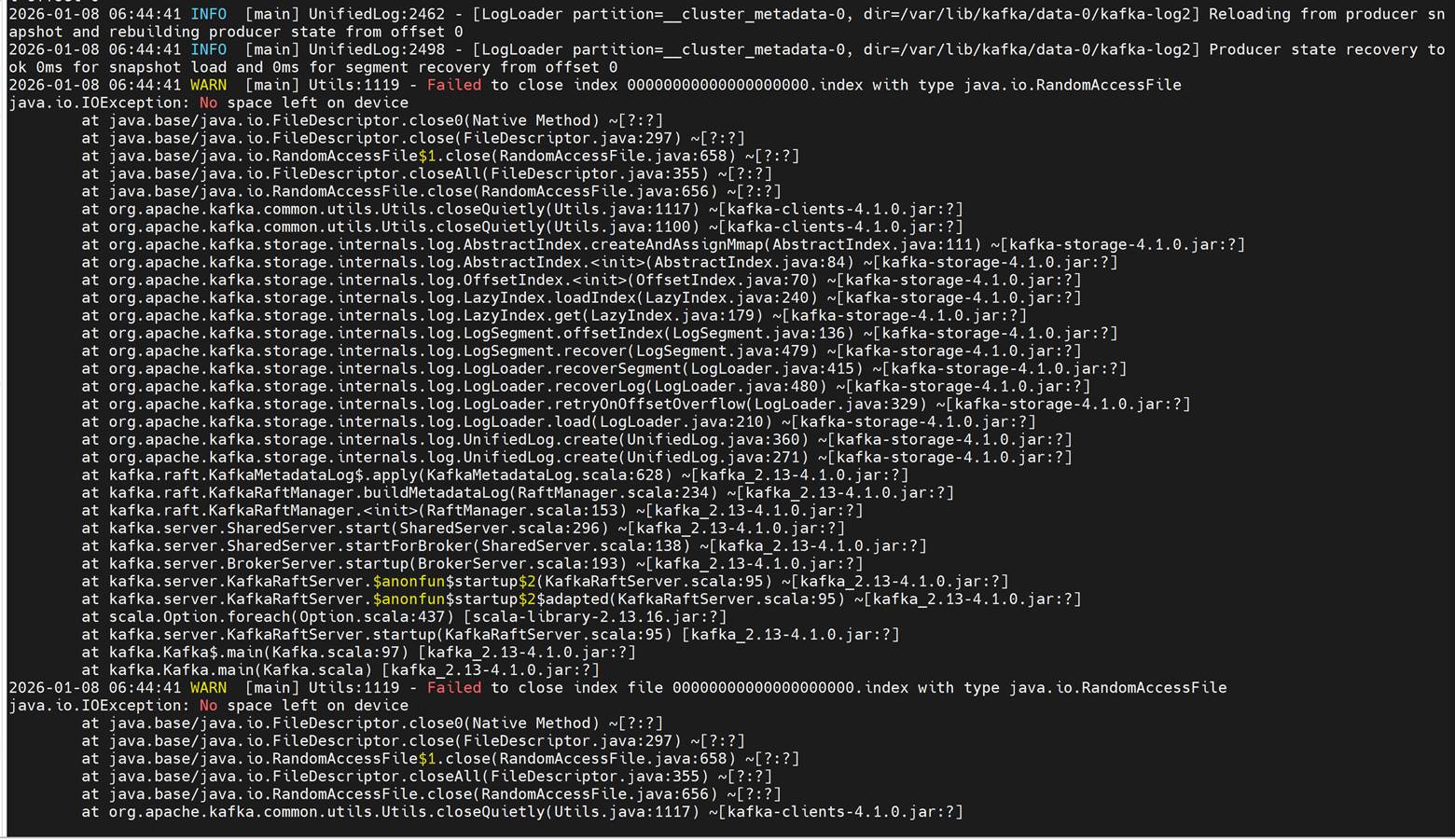

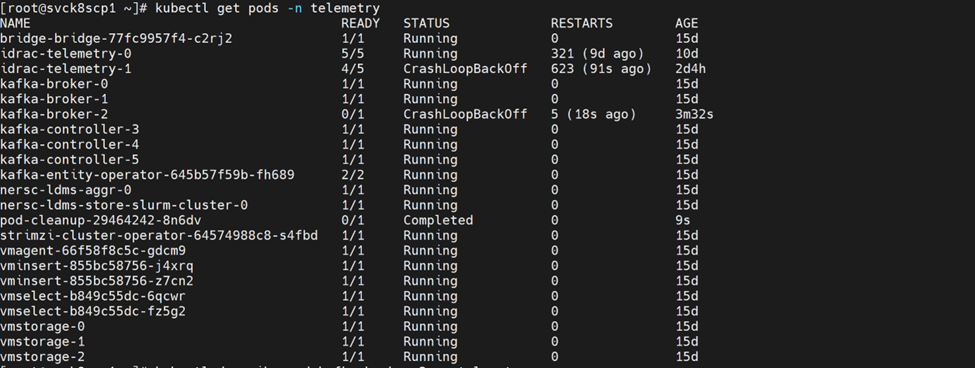

7.2 Kafka “No space left on device”

Symptoms

_images/faq_telemetry_error_crash_loop.png

Cause

Configured persistence_size for Kafka reaches capacity limit.

Resolution

The default 8Gi persistent volume size is suitable for small clusters (typically fewer than 5 nodes). For larger clusters, increase the persistence_size and configure Kafka retention settings log_retention_hours and log_retention_bytes so that old logs are deleted before the persistent volume reaches its limit.

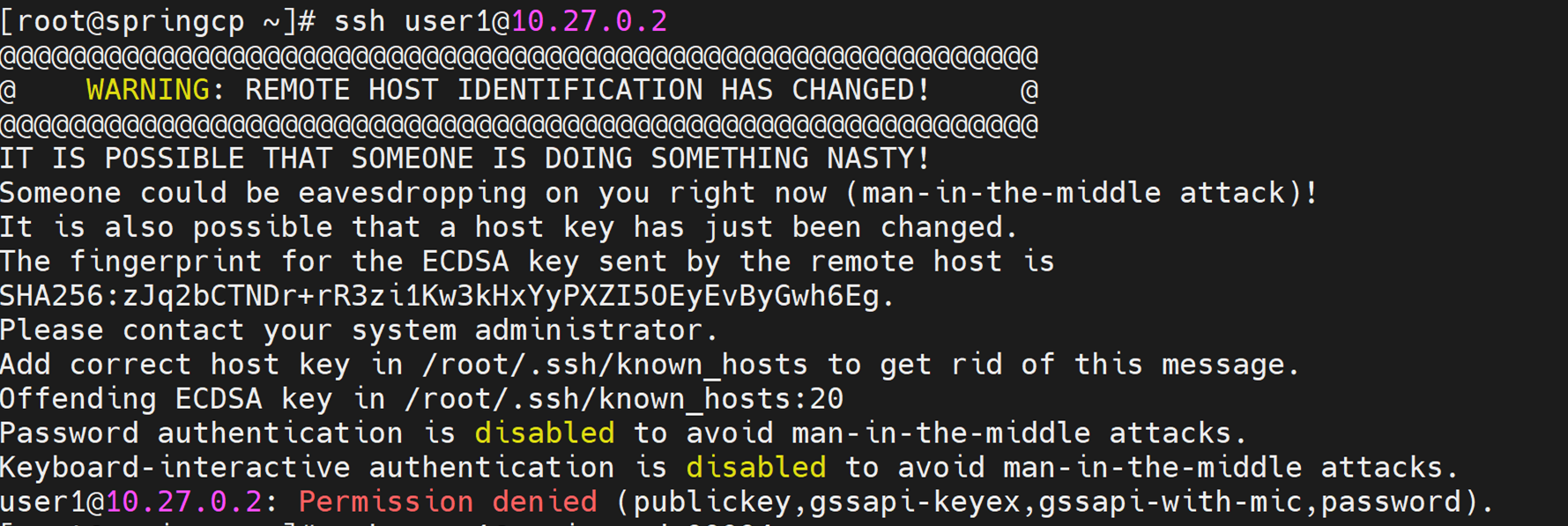

8. Authentication Issues 

9. OpenCHAMI Issues 

9.1 Certificate Expiration 

Resolution

sudo openchami-certificate-update update <OIM_hostname>.<domain>
sudo systemctl restart openchami.target

9.2 Token Expired 

Resolution

export <OIM_HOSTNAME>_ACCESS_TOKEN=$(sudo bash -lc 'gen_access_token')

9.3 discovery.yml Fails - prepare_oim Needs to be Executed 

Cause

The OpenCHAMI container is not up and running.

Resolution

Perform a cleanup using oim_cleanup.yml and re-run the prepare_oim.yml playbook to bring up the OpenCHAMI containers. After prepare_oim.yml playbook has been executed successfully, re-deploy the cluster using the steps mentioned in the Omnia deployment guide.

10. General Issues 

10.1 Playbook Fails Due to HW/Network/Storage 

Resolution

Fix underlying issue → re-run playbook.

10.2 Graceful Shutdown of Omnia Cluster 

Procedure

Shutdown compute nodes first
Shutdown OIM last
On startup, power on OIM first → then compute nodes

10.3 Licensing Requirements 

Resolution

While Omnia playbooks are licensed by Apache 2.0, Omnia deploys multiple software that are licensed separately by their respective developer communities. For a comprehensive list of software and their licenses, click here.

10.4 Troubleshooting Logs 

For more information, see Logs.

10.5 Local Repository Package Download Issues 

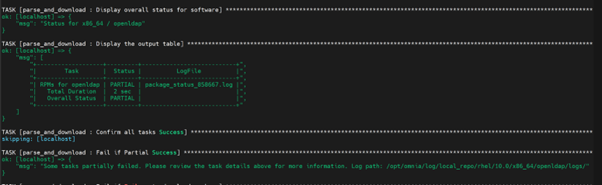

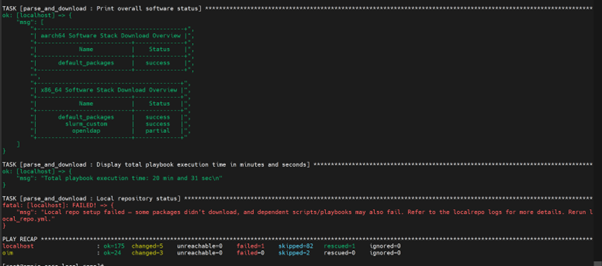

The local_repo.yml playbook generates and provides log files as part of its execution. For example, if the local repository is partially unsuccessful for OpenLDAP, analyze the issue using the following steps:

_images/troubleshooting_local_repo_updated.png

_images/troubleshooting_local_repo_updated_1.png

To view the overall download status of all software in the .csv format, run the following command:

/opt/omnia/log/local_repo/<cluster_os>/<cluster_os_version>/<arch>/software.csv

Example:

/opt/omnia/log/local_repo/rhel/10.0/x86_64/software.csv

_images/troubleshooting_local_repo_updated_2.png

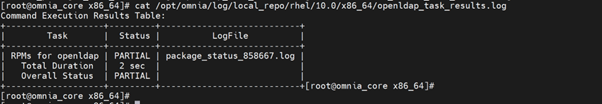

To view the overall download status of all packages and the log filenames for a specific software, run the following command:

/opt/omnia/log/local_repo/rhel/10.0/x86_64/<sw>_task_results.log

Example: For nfs:

/opt/omnia/log/local_repo/rhel/10.0/x86_64/openldap_task_results.log

_images/troubleshooting_local_repo_updated_3.png

To view the package level status, run the following command:

/opt/omnia/log/local_repo/<cluster_os>/<cluster_os_version>/<arch>/<sw>/status.csv

Example:

/opt/omnia/log/local_repo/rhel/10.0/x86_64/openldap/status.csv

_images/troubleshooting_local_repo_updated_4.png

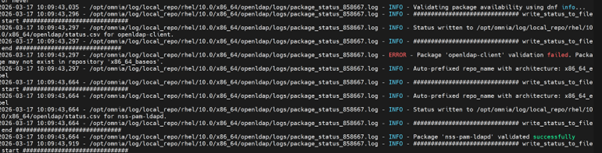

To view the issues information and the reason for job being unsuccessful, see the package_status_<pid>.log file mentioned in the <sw>_task_result.log.

Example:

/opt/omnia/log/local_repo/rhel/10.0/x86_64/openldap/logs/package_status_858667.log

_images/troubleshooting_local_repo_updated_5.png

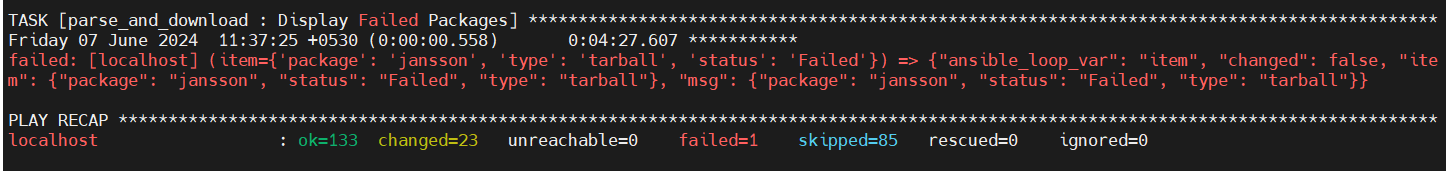

Why does the local_repo.yml playbook execution fail at TASK [parse_and_download : Display Failed Packages] ?

Cause: This issue is encountered if Omnia fails to download any software package while executing local_repo.yml playbook. Download failures can occur if:

The URL to download the software packages mentioned in the <cluster_os_type>/<cluster_os_version>/<software>.json is incorrect or the repository is unreachable.

The provided Docker credentials are incorrect or if you encounter a Docker pull limit issue. For more information, click here.

If disk space is insufficient while downloading the package.

Resolution: Re-run the local_repo.yml playbook while ensuring the following:

URL to download the software packages mentioned in <arch>/<cluster_os_type>/<cluster_os_version>/<software>.json is correct, and the repository is reachable.

Docker credentials provided in input/omnia_config_credentials.yml are correct.

Sufficient disk space is available while downloading the package. For disk space considerations, see the Omnia installation guide.

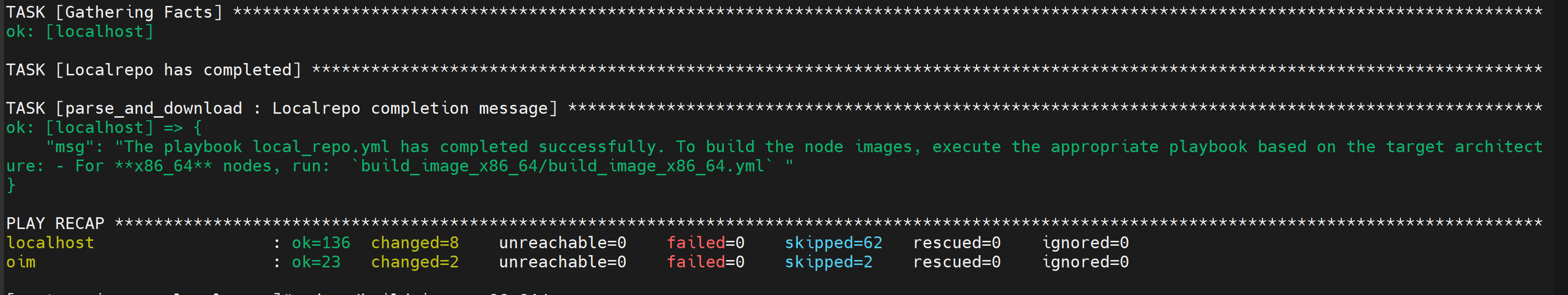

If the local_repo.yml is executed successfully without any package download failures, a Successful message is displayed as shown below:

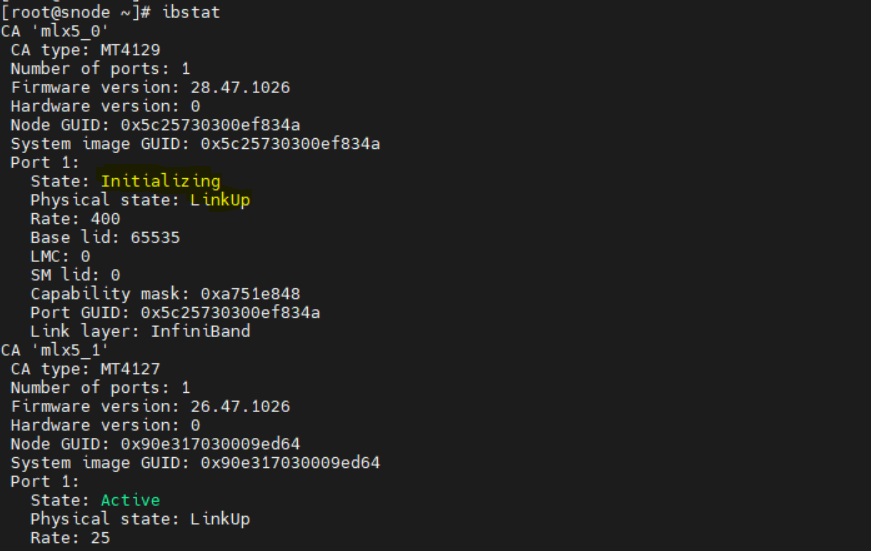

10.6 InfiniBand Issues 

Symptoms

InfiniBand ports stuck in Initializing state after boot.

Cause

The Open Subnet Manager (OpenSM) service is not running on the InfiniBand (IB) switch.

Resolution

Ensure that the Open Subnet Manager service is enabled and running on the InfiniBand switch.
After enabling OpenSM on the IB switch, do the following: * PXE boot all the IB NIC based nodes. * Run the following command on the host: ibstat * Verify that the InfiniBand ports state transition to: State: Active

10.7 System Recovery Issues 

Omnia containers not coming up after OIM reboot

Cause

The Admin NIC on the OIM may have its autoconnect settings disabled (autoconnect=no), which stops it from reconnecting automatically after a reboot.

Resolution

Ensure that the Admin NIC on the OIM is configured with autoconnect=yes so it automatically reconnects after reboot. If you changed this configuration, reboot your OIM once to nullify any cache-related or stale configuration issues.

PostgreSQL container deployment fails after cleanup

Cause

Database initialization issues when existing data is present.

Resolution

To reuse the existing PostgreSQL database data available at postgres_data_dir, re-run prepare_oim.yml using the same PostgreSQL database credentials that you used in the previous deployment.
To delete the existing PostgreSQL database data and create a new one, run the following commands:

ansible-playbook utils/oim_cleanup.yml -e postgres_backup=false

The playbook deletes the PostgreSQL data at postgres_data_dir and the associated data and log files. After cleanup completes, re-run prepare_oim.yml to deploy a new postgres_container_name container.

10.8 Connectivity Issues 

local_repo.yml fails with connectivity errors

Cause

The OIM was unable to reach a required online resource due to a network glitch.

Resolution

Verify all connectivity and re-run the playbook.

Software installation fails with checksum error

Cause

A local repository for the software has not been configured by the local_repo.yml playbook.

Resolution

Re-run the local_repo.yml playbook with proper inputs to download the software package to the Pulp repository.
Once the local repository has been configured successfully, re-run the failed installation script.

If you have any feedback about Omnia documentation, please reach out at omnia.readme@dell.com.
