Step 8: Configure Telemetry Requirements

Omnia enables telemetry collection using both iDRAC Telemetry and LDMS (Lightweight Distributed Metric Service) in HPC environments. This design ensures that telemetry components are dynamically provisioned with stateless provisioning tool, providing flexible deployment and simplified lifecycle management.

  • iDRAC Telemetry provides out-of-band system metrics from Dell servers, including power, thermal, and hardware health information. The iDRAC Telemetry data can be collected and streamed to Kafka or VictoriaMetrics, depending on the deployment needs.

  • LDMS Telemetry collects in-band performance metrics such as CPU, memory, network, and I/O statistics from compute nodes. The LDMS Telemetry data can be collected and streamed to Kafka.

Note

Ensure that the service_k8s entry is mentioned in the software_config.json file when idrac_telemetry_support is set to true in the telemetry_config.yml file.

Omnia Telemetry Architecture

Omnia collects telemetry data from HPC cluster nodes using: LDMS for OS-level metrics and iDRAC for hardware telemetry.

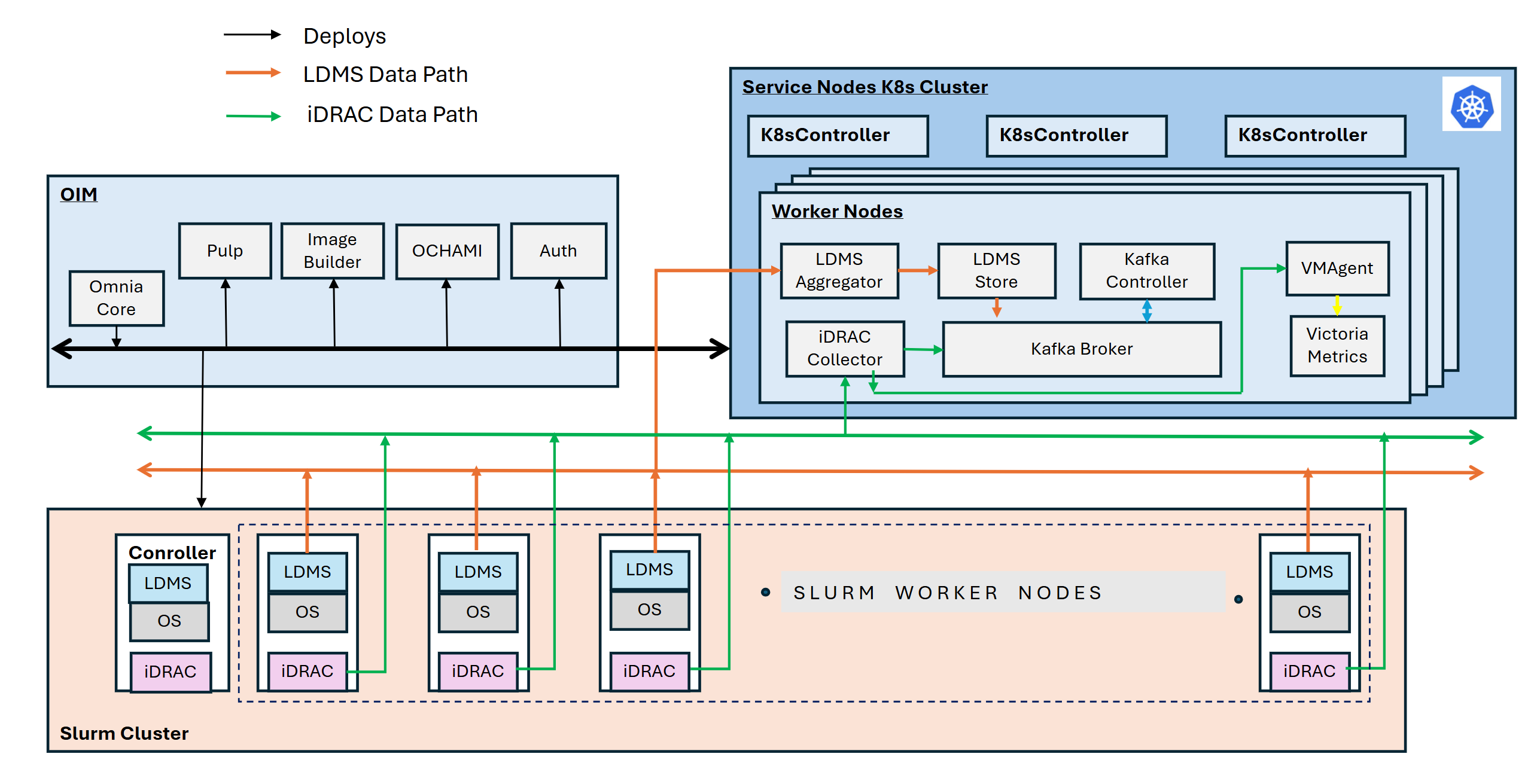

The following diagram illustrates the telemetry services that can be deployed using Omnia and the data flow between the components.

../../../_images/omnia_telemetry_architecture.png

Telemetry Components

The following components are involved in the telmetry services deployed by Omnia:

OIM (Omnia Infrastructure Manager)

Central management node that deploys and configures all telemetry services across the cluster.

Service Kubernetes Cluster

Hosts telemetry collection and storage services:

  • LDMS Aggregator – Receives metrics from slurm compute node samplers.

  • LDMS Store – Stores aggregated LDMS data

  • iDRAC Collector – Collects hardware telemetry via Redfish API

  • Kafka Broker – Streams telemetry data

  • VMAgent – Forwards metrics to Victoria Metrics

  • Victoria Metrics – Time-series database for metric storage

Slurm Cluster

Each slurm compute node runs:

  • LDMS Sampler – Collects OS metrics (CPU, memory, network, and I/O)

  • iDRAC – Provides hardware health data (temperature, power, and fans)

iDRAC and LDMS Telemetry Data Flows

LDMS Flow (OS Metrics)

Slurm Compute Nodes (LDMS Sampler) → LDMS Aggregator → LDMS Store → Kafka

iDRAC Flow (Hardware Metrics)

iDRAC (BMC) → iDRAC Collector → Kafka
iDRAC (BMC) → iDRAC Collector → VMAgent → Victoria Metrics
