Discover the Cluster Nodes

The discovery.yml playbook discovers the probable bare-metal cluster nodes. This playbook is dependent on inputs from the mapping file and the following input files:

  • /opt/omnia/input/project_default/provision_config.yml

  • /opt/omnia/input/project_default/network_spec.yml

Note

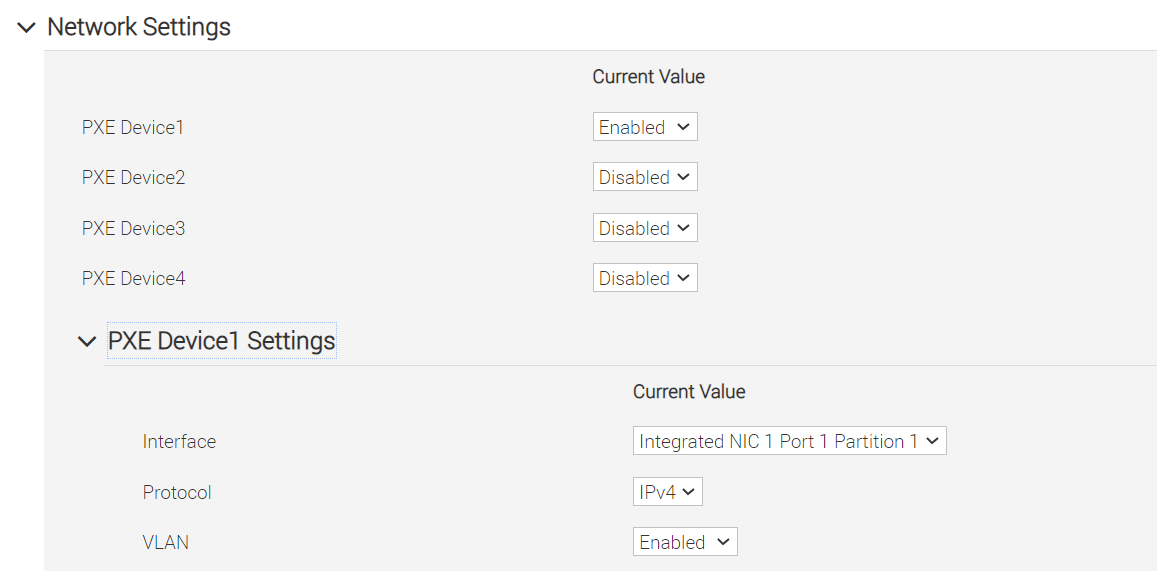

The first PXE device on target nodes should be the designated active NIC for PXE booting.

../../../_images/BMC_PXE_Settings.png

Configurations made by the discovery.yml playbook

  • Discovers all target servers.

  • Configures the boot script based on the functional groups.

  • Configures the cloud-init based on the functional groups.

  • Deploys iDRAC telemetry service on the service cluster.

  • Deploys LDMS on the service cluster.

Playbook execution

Prerequisites

Before running the discovery.yml playbook, ensure that the images are created for each functional group defined in the mapping file. To verify that the images are created, run the following command on the OIM:

s3cmd ls -Hr s3://boot-images

To deploy the Omnia provision tool, execute the following commands:

ssh omnia_core
cd /omnia/discovery
ansible-playbook discovery.yml

Note

  • After executing discovery.yml playbook, you can check the log files available at /opt/omnia/log for more information.

  • To identify any issues on the node booted, check the /var/log/cloud-init-output.log.

  • Omnia does not track the OS installation on the target node. User has verify the installation status manually.

  • Ansible playbooks by default run concurrently on 5 nodes. To change this, update the forks value in ansible.cfg present in the respective playbook directory.

  • While the admin_nic on cluster nodes is configured by Omnia to be static, the public NIC IP address should be configured by user.

  • All ports required by OpenCHAMI will be opened (For a complete list, see Omnia Ports).

  • After running discovery.yml, the file /opt/omnia/input/project_default/omnia_config_credentials.yml will be encrypted. To edit the file, use the command: ansible-vault edit omnia_config_credentials.yml --vault-password-file .omnia_config_credentials_key

  • Post execution of discovery.yml, IPs/hostnames cannot be re-assigned by changing the mapping file.

Caution

  • In case of any IP route conflict between Admin network and additional NIC (for example: Internet NIC), delete the Admin route or configure the IP route priority based on your cluster requirements.

  • If the internet connection is required on the target node, configure it after the node is booted.

  • To avoid breaking the password-less SSH channel on the OIM, do not run ssh-keygen commands post execution of discovery.yml to create a new key.

  • Do not delete the Omnia shared path or the NFS directory.

Next steps:

  • After successfully running the discovery.yml playbook, you can either manually PXE boot the nodes or use the set_pxe_boot.yml playbook. PXE booting allows the nodes to load diskless images from the Omnia Infrastructure Manager (OIM). For detailed steps on using set_pxe_boot.yml, see Set PXE Boot Order.

  • Execute telemetry.yml to start the telemetry collection.
